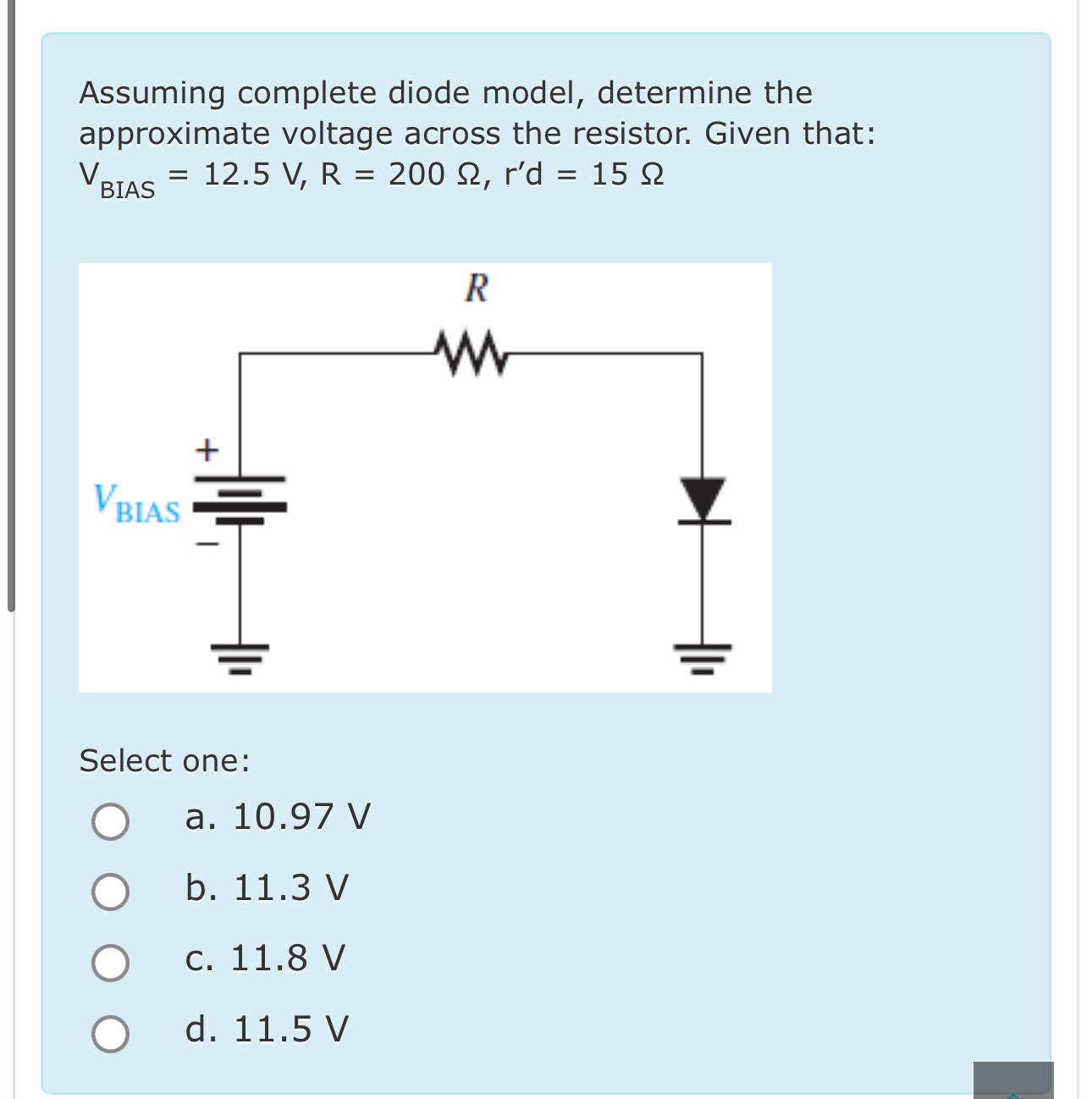

Assuming complete diode model, determine the approximate voltage across the resistor. Given that:
V_(BIAS )=12.5V,R=200\Omega ,r^(')d=15\Omega
Select one a.
10.97V
b.
11.3V
C.
11.8V
d.
11.5V

Question

Assuming complete diode model, determine the approximate voltage across the resistor. Given that:

V_(BIAS )=12.5V,R=200\Omega ,r^(')d=15\Omega

Select one a.

10.97V

b.

11.3V

C.

11.8V

d.

11.5V
