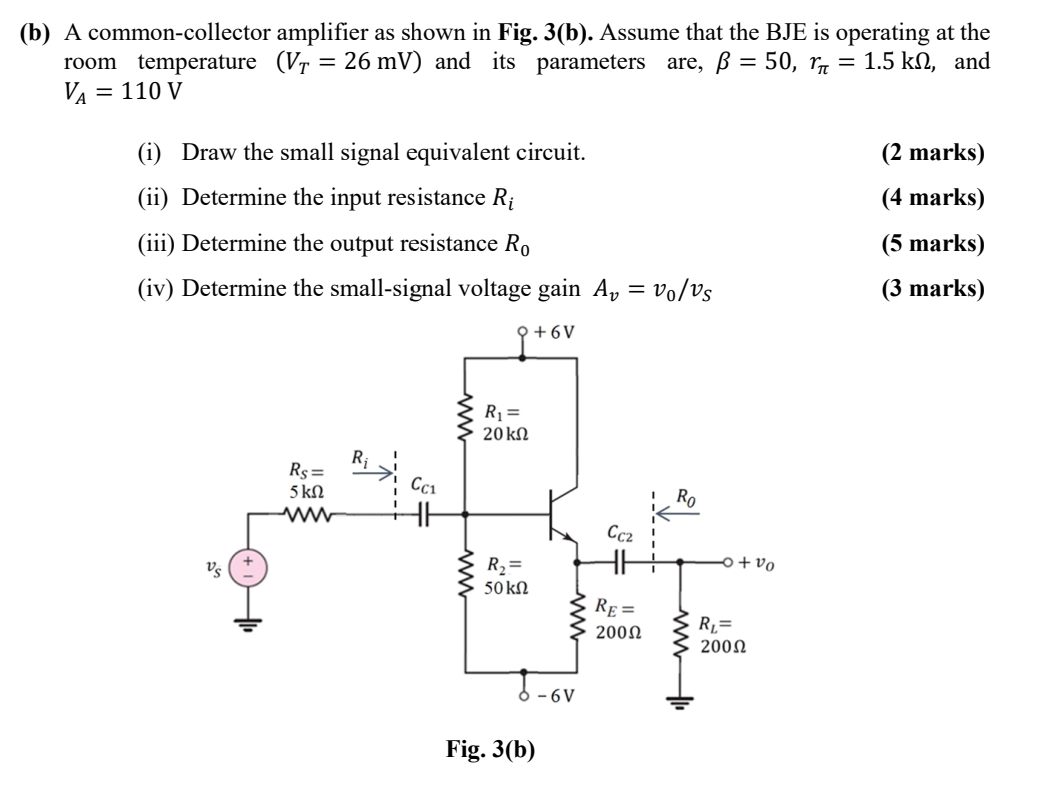

(b) A common-collector amplifier as shown in Fig. 3(b). Assume that the BJE is operating at the room temperature (
V_(T)=26mV
) and its parameters are,
\beta =50,r_(\pi )=1.5k\Omega
, and
V_(A)=110V
(i) Draw the small signal equivalent circuit. (2 marks) (ii) Determine the input resistance
R_(i)
(4 marks) (iii) Determine the output resistance
R_(0)
( 5 marks) (iv) Determine the small-signal voltage gain
A_(v)=(v_(0))/(v_(S))
(3 marks)
