(Solved): Bar BC rotates about the fixed pivot B with constant angular velocity \omega =3(rad)/(s). Pin A is f ...

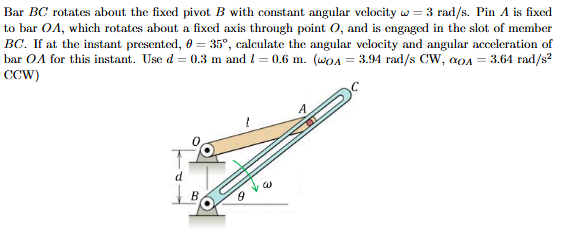

Bar BC rotates about the fixed pivot B with constant angular velocity \omega =3(rad)/(s). Pin A is fixed
to bar OA, which rotates about a fixed axis through point O, and is engaged in the slot of member
BC. If at the instant presented, \theta =35\deg , calculate the angular velocity and angular acceleration of
bar OA for this instant. Use d=0.3m and l=0.6m
