(Solved): c) Figure Q1 below shows the single line diagram of an Electrical Power System. The details of the ...

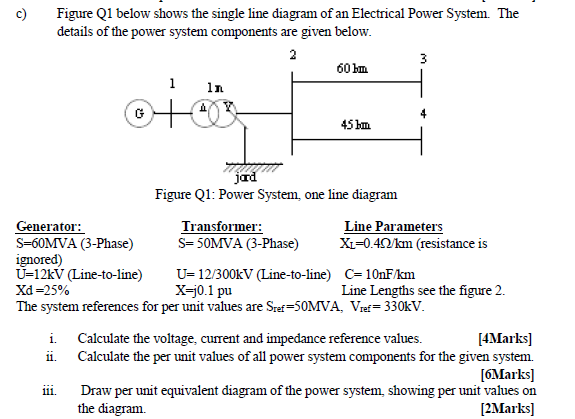

c) Figure Q1 below shows the single line diagram of an Electrical Power System. The details of the power system components are given below. Figure Q1: Power System, one line diagram The system references for per unit values are \( \mathrm{S}_{\mathrm{ref}}=50 \mathrm{MVA}, \mathrm{V}_{\mathrm{ref}}=330 \mathrm{kV} \). i. Calculate the voltage, current and impedance reference values. [4Marks] ii. Calculate the per unit values of all power system components for the given system. [6Marks] iii. Draw per unit equivalent diagram of the power system, showing per unit values on the diagram. [2Marks]
