Calculate the power delivered to each resistor in the circuit shown in the figure below. (Let $R_{1} = 5.00?, R_{2} = 2.00?$ , and $V = 12.0 V$ ) (i) resistor $R_{1}$ If you replace all four resistors with an equivalent resistance, would this affect the current through the battery? How is the current through the battery related to the current through $R_{1}$ ? W

Question

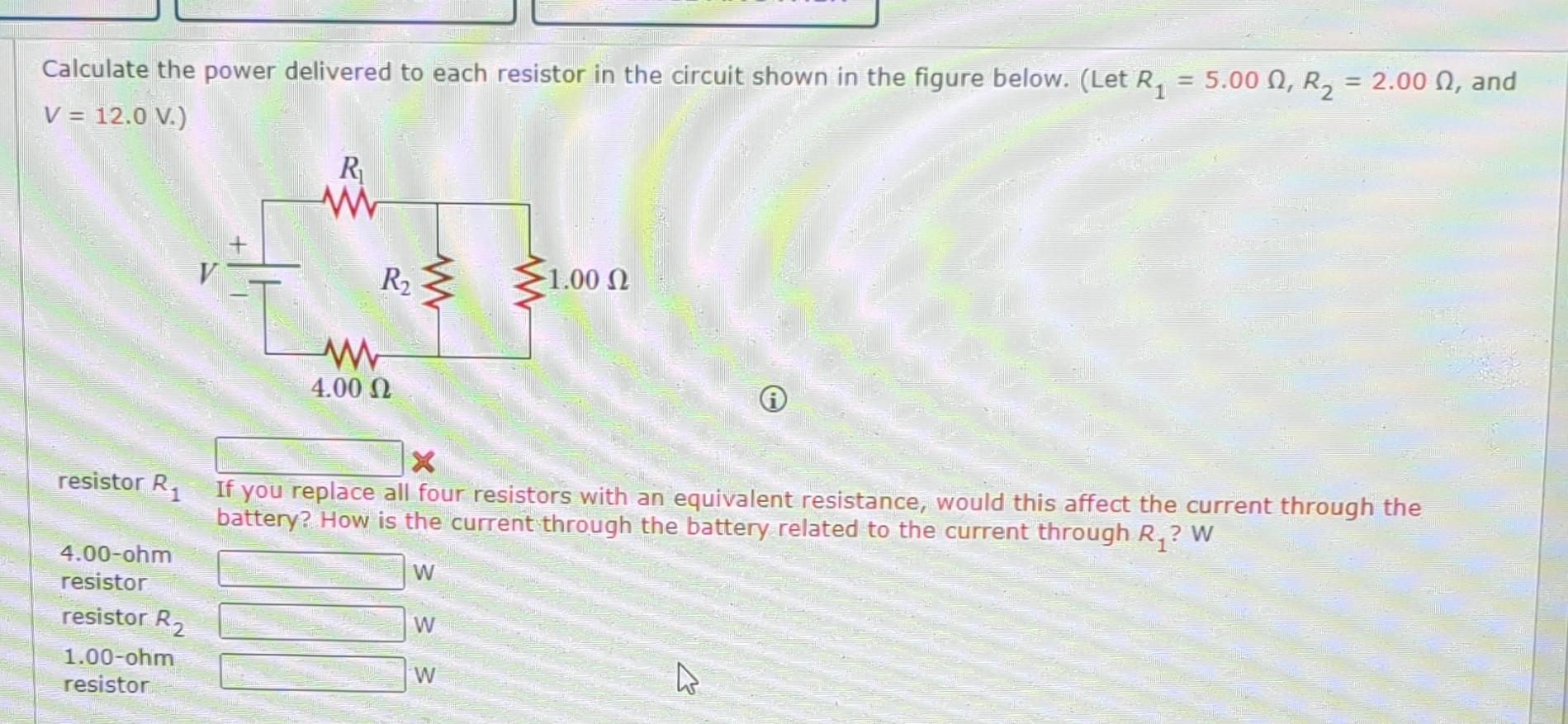

student submitted image, transcription available below

Calculate the power delivered to each resistor in the circuit shown in the figure below. (Let

R_{1} = 5.00?, R_{2} = 2.00?

, and

V = 12.0 V

) (i) resistor

R_{1}

If you replace all four resistors with an equivalent resistance, would this affect the current through the battery? How is the current through the battery related to the current through

R_{1}

? W
