(Solved): Compare between BJT , MOSFET, IGBT based on : Symbol, input impedence, switching speed, output volt ...

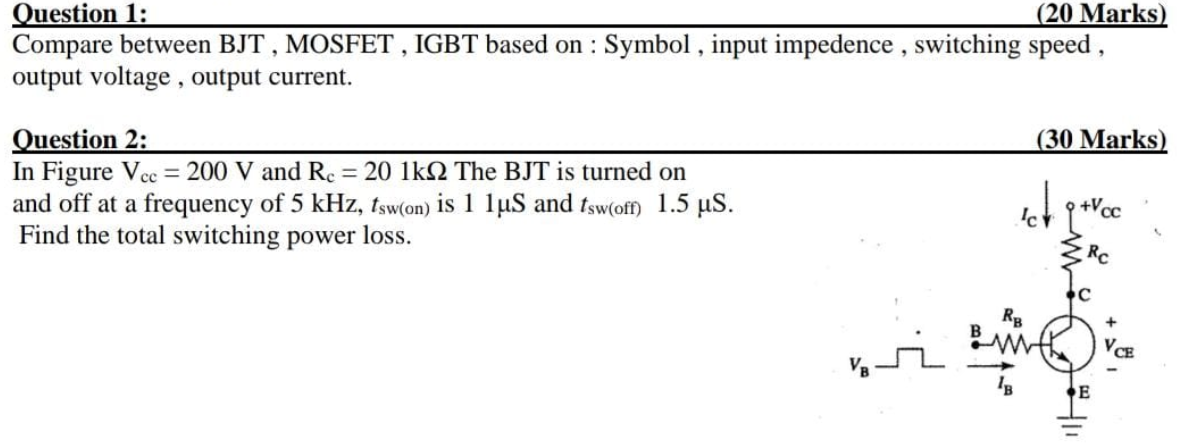

Compare between BJT , MOSFET, IGBT based on : Symbol, input impedence, switching speed, output voltage, output current. Question 2: (30 Marks) In Figure \\( \\mathrm{V}_{\\mathrm{cc}}=200 \\mathrm{~V} \\) and \\( \\mathrm{R}_{\\mathrm{c}}=201 \\mathrm{k} \\Omega \\) The BJT is turned on and off at a frequency of \\( 5 \\mathrm{kHz}, t_{\\mathrm{sw}(\\mathrm{on})} \\) is \\( 11 \\mu \\mathrm{S} \\) and \\( t_{\\mathrm{sw}(\\text { off) }} 1.5 \\mu \\mathrm{S} \\). Find the total switching power loss.
