(Solved): Consider the circuit shown below: The input voltage \( V_{I N}(t) \) is shown below: - What is thi ...

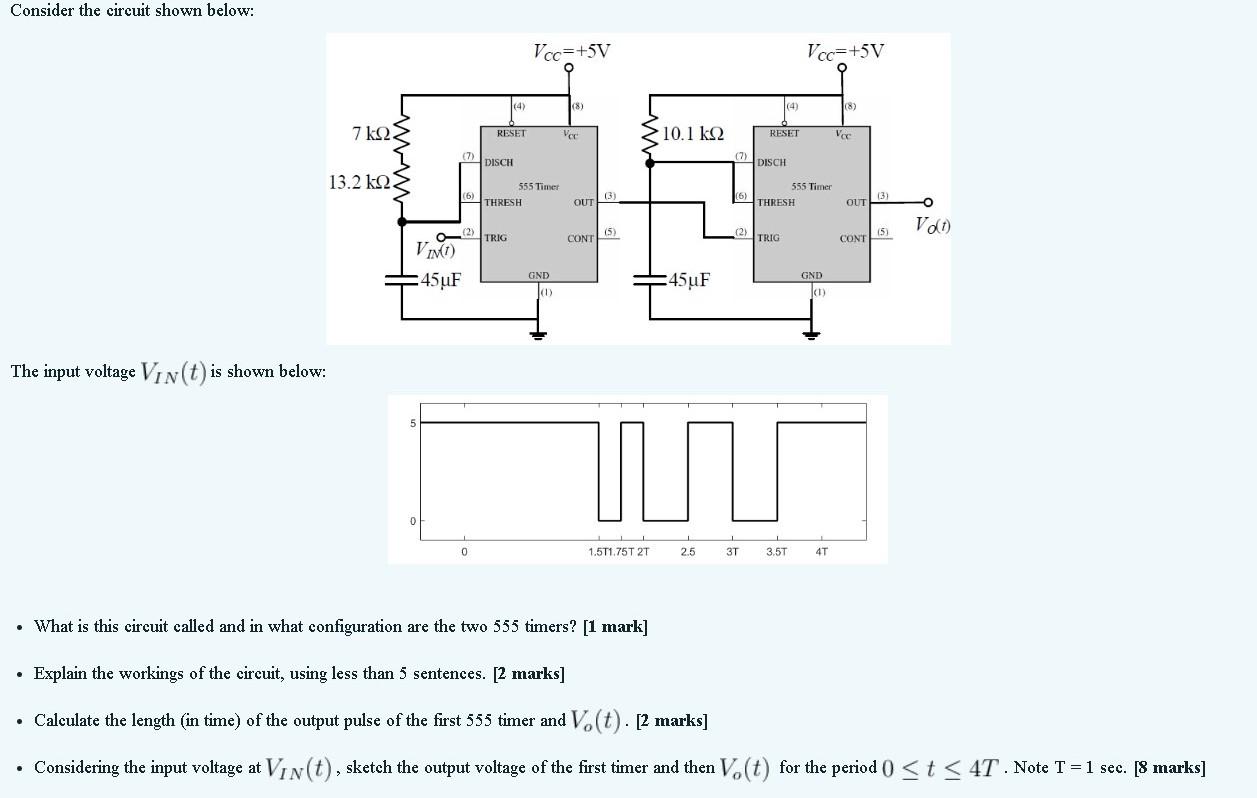

Consider the circuit shown below: The input voltage \( V_{I N}(t) \) is shown below: - What is this circuit called and in what configuration are the two 555 timers? [1 mark] - Explain the workings of the circuit, using less than 5 sentences. [2 marks] - Calculate the length (in time) of the output pulse of the first 555 timer and \( V_{o}(t) \cdot[2 \) marks] - Considering the input voltage at \( V_{I N}(t) \), sketch the output voltage of the first timer and then \( V_{o}(t) \) for the period \( 0 \leq t \leq 4 T \). Note \( \mathrm{T}=1 \) sec. [8 marks]
