(Solved): Consider the following one-line diagram for two transformers in parallel. The actual turns ratio and ...

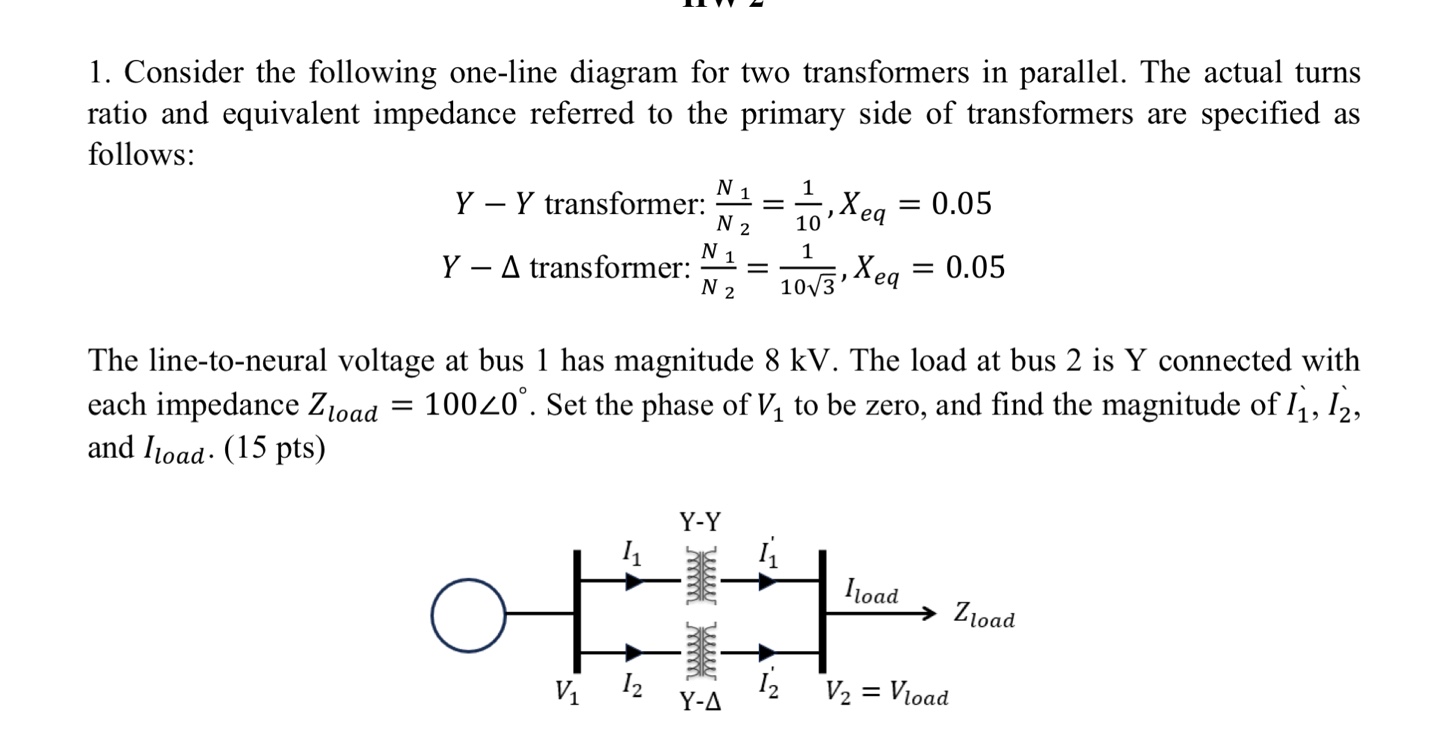

Consider the following one-line diagram for two transformers in parallel. The actual turns ratio and equivalent impedance referred to the primary side of transformers are specified as follows: Y-Y transformer: (N_(1))/(N_(2))=(1)/(10),x_(eq)=0.05 Y-\Delta transformer: (N_(1))/(N_(2))=(1)/(10\sqrt(3)),x_(eq)=0.05 The line-to-neural voltage at bus 1 has magnitude 8 kV . The load at bus 2 is Y connected with each impedance Z_(load )=(100)/(_(0))\deg . Set the phase of V_(1) to be zero, and find the magnitude of I_(1)^(`),I_(2)^(`), and I_(load ). (15pts)
