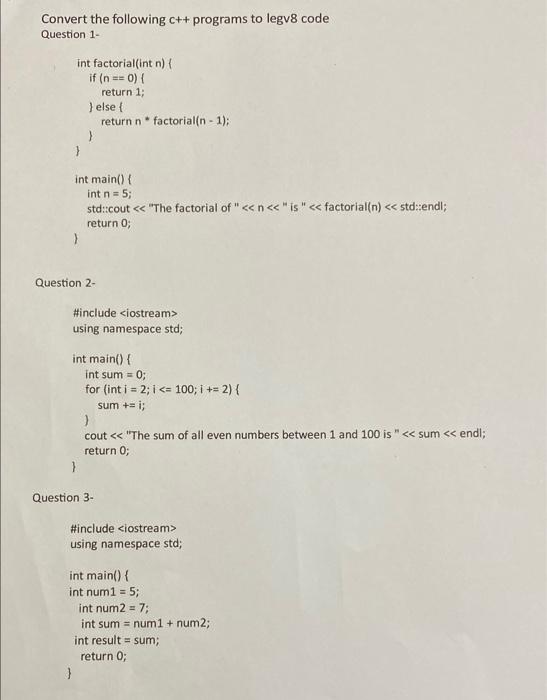

(Solved): Convert the following c++ programs to legv 8 code Question 1- int factorial(int n){ if (n==0){ retu ...

Expert Answer

---

Answer:

Step 1:



Question 1: The factorial function can be implemented recursively, so we would need to set up a base case for n=0 and a recursive case for n>0. In LEGV8, function arguments and return values are typically passed through registers, so we would need to set up a stack frame and use registers to pass arguments and store local variables.

Here's an example implementation of the factorial function in LEGV8 assembly language:

.factorial:
// set up stack frame
stp x29, x30, [sp, -16]!
mov x29, sp

// load argument n into register x0
ldr x0, [x29, 8]

// check if n is 0
cmp x0, 0
b.eq .base_case

// recursive case: compute n * factorial(n-1)
sub x1, x0, 1 // x1 = n - 1
bl .factorial // recursive call to factorial(n-1)
mul x0, x0, x1 // x0 = n * (n-1)

// restore stack frame and return
mov sp, x29
ldp x29, x30, [sp], 16
ret

.base_case:
// base case: n = 0, return 1
mov x0, 1

// restore stack frame and return
mov sp, x29
ldp x29, x30, [sp], 16
ret

To call the factorial function from main, we would need to pass the argument n in register x0 and use the bl instruction to jump to the factorial function. The return value would be stored in register x0 after the function call.
Here's an example implementation of the main function in LEGV8 assembly language:

.global main
main:
// set up stack frame
stp x29, x30, [sp, -16]!
mov x29, sp

// call factorial function with argument n=5
mov x0, 5
bl .factorial

// print result using system call
adr x0, msg
mov x1, x0
mov x2, x0
bl printf

// restore stack frame and return
mov sp, x29
ldp x29, x30, [sp], 16
mov x0, 0
ret

msg:
.asciz "The factorial of 5 is %d\n"


This implementation calls the factorial function with n=5, stores the result in register x0, and uses the printf function to print the result to the console. The msg label is used to store the format string for the printf function.

Note that this is just one example implementation of the C++ code in LEGV8 assembly language, and the exact instructions and registers used may vary depending on the specific implementation details.
