(Solved): - Create a bicycle frame and perform Free Body Diagram (FBD) analysis to account for all external fo ...

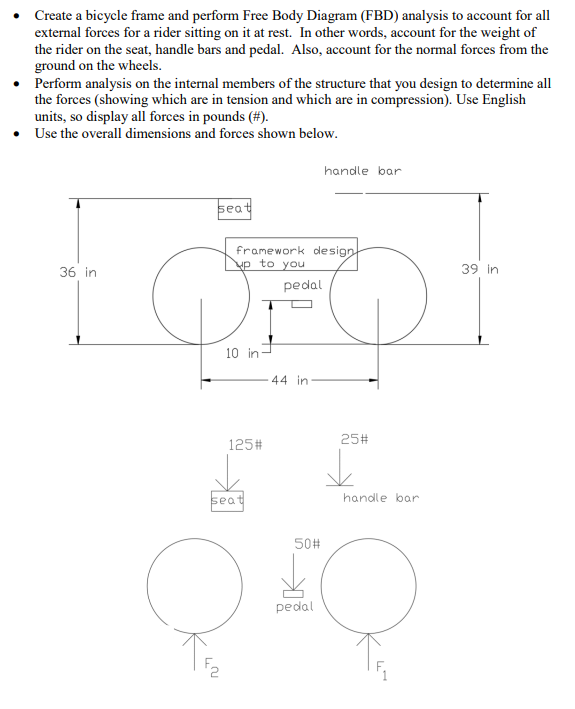

- Create a bicycle frame and perform Free Body Diagram (FBD) analysis to account for all external forces for a rider sitting on it at rest. In other words, account for the weight of the rider on the seat, handle bars and pedal. Also, account for the normal forces from the ground on the wheels. - Perform analysis on the internal members of the structure that you design to determine all the forces (showing which are in tension and which are in compression). Use English units, so display all forces in pounds (\#). - Use the overall dimensions and forces shown below. handle bar
