(Solved): Design a sequence recognize (Moore or Mealy Machine) , that outputs a "1" when the bit sequence \( ...

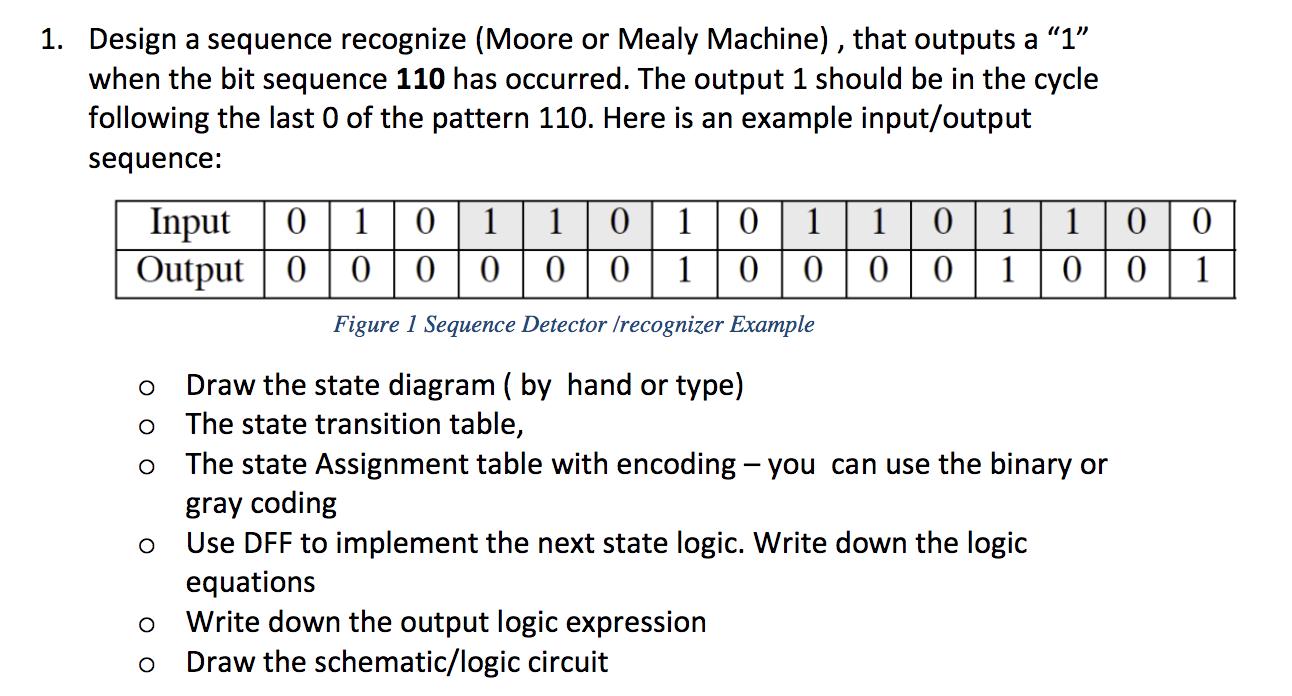

Design a sequence recognize (Moore or Mealy Machine) , that outputs a "1" when the bit sequence \( \mathbf{1 1 0} \) has occurred. The output 1 should be in the cycle following the last 0 of the pattern 110 . Here is an example input/output sequence: Figure 1 Sequence Detector /recognizer Example Draw the state diagram ( by hand or type) The state transition table, The state Assignment table with encoding - you can use the binary or gray coding Use DFF to implement the next state logic. Write down the logic equations - Write down the output logic expression Draw the schematic/logic circuit
