(Solved): Design an RC band-pass filter circuit, with cutoff frequencies of 1000 Hz , and 50,000Hz. a) (5-poin ...

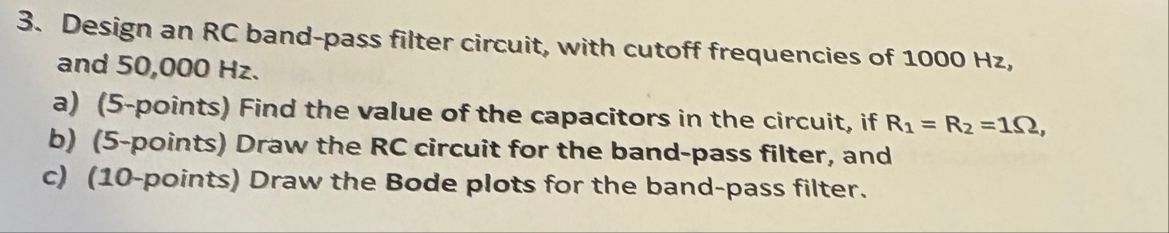

Design an RC band-pass filter circuit, with cutoff frequencies of 1000 Hz , and
50,000Hz. a) (5-points) Find the value of the capacitors in the circuit, if
R_(1)=R_(2)=1\Omega , b) (5-points) Draw the RC circuit for the band-pass filter, and c) (10-points) Draw the Bode plots for the band-pass filter.
