(Solved): Determine the largest permissible distributed load \( w \) for the beam shown, knowing that the al ...

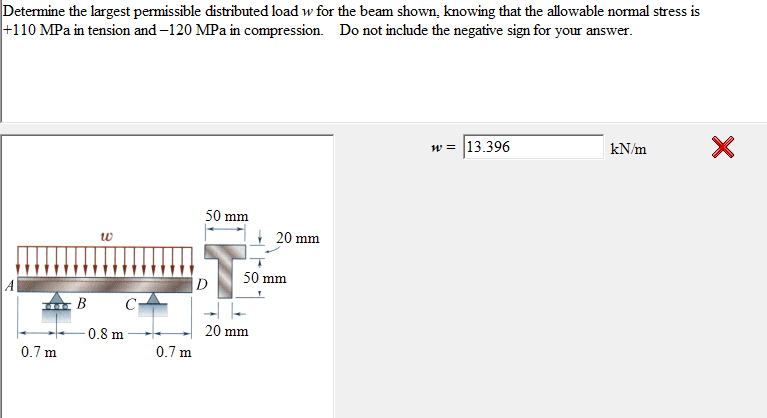

Determine the largest permissible distributed load \( w \) for the beam shown, knowing that the allowable normal stress is \( +110 \mathrm{MPa} \) in tension and \( -120 \mathrm{MPa} \) in compression. Do not include the negative sign for your answer.
Expert Answer
Draw a free body diagram determine supported reactions at point B and C of the given beam. wAC yCBByD0.7 m0.8 m0.7 mCx Applying Equilibrium conditions
