Determine the reaction forces at supports \( A \) and \( C \) of the compound beam. Assume \( A \) is fixed, \( B \) is a pin

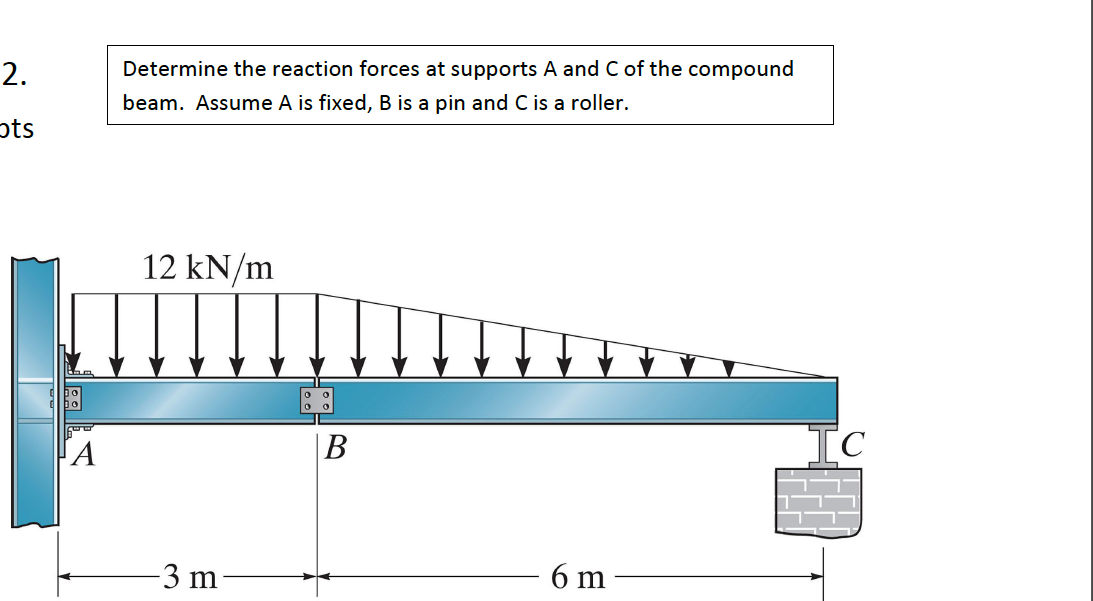

Determine the reaction forces at supports \( A \) and \( C \) of the compound beam. Assume \( A \) is fixed, \( B \) is a pin and \( C \) is a roller.


We have an Answer from Expert

View Expert Answer

Expert Answer

Step 1: Calculation of total reaction on beam: Assume that reaction on end A = Ra and reaction on beam C = Rc ½ Ra+Rc=12×3+½×12×6=72Ra=72?RC
