(Solved): Determine the voltage gain Avmid (5pts), flower (5pts) and fupper (5pts) cutoff frequency of a commo ...

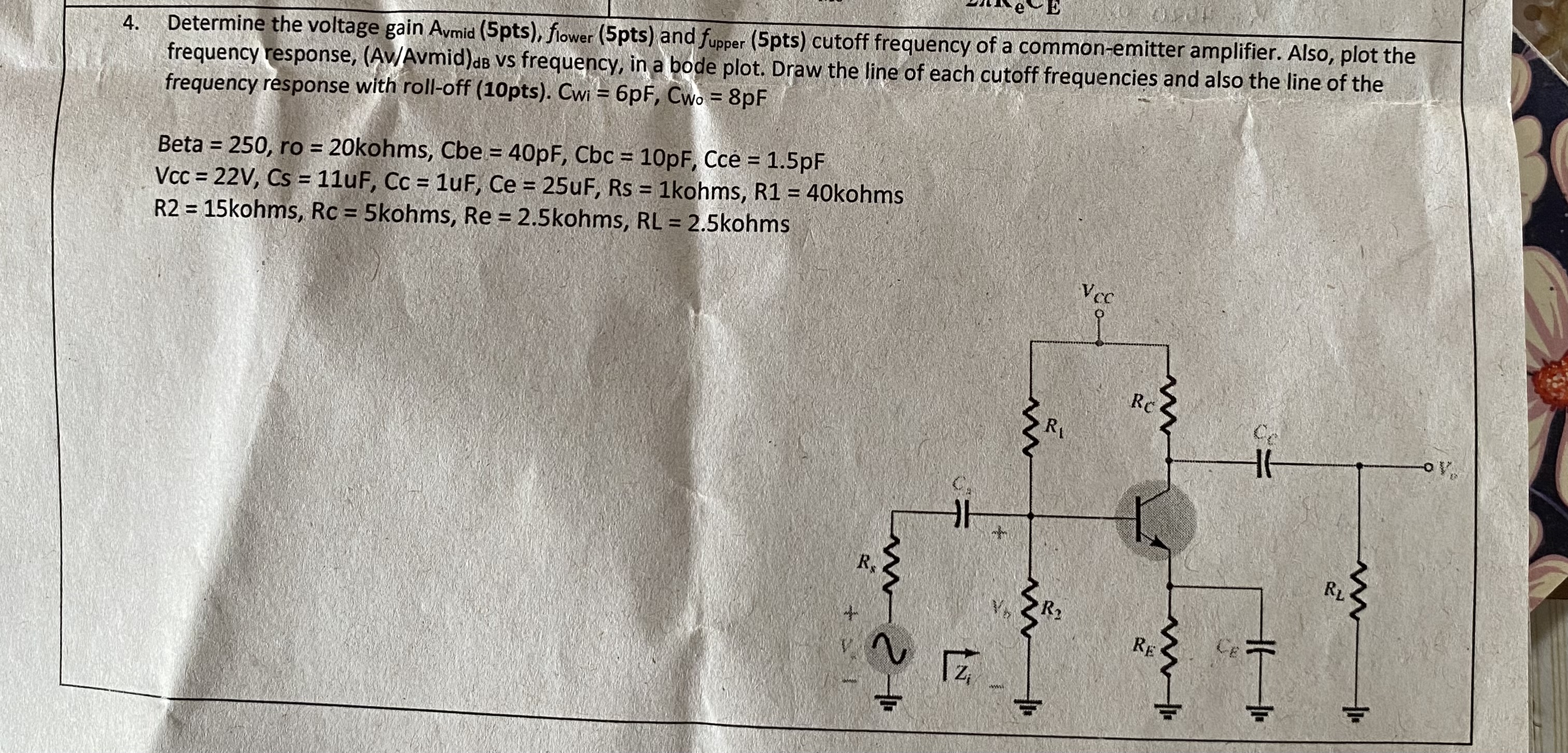

Determine the voltage gain Avmid (5pts), flower (5pts) and fupper (5pts) cutoff frequency of a common-emitter amplifier. Also, plot the frequency response, ((Av)/(Avmid) )dB vs frequency, in a bode plot. Draw the line of each cutoff frequencies and also the line of the frequency response with roll-off. Cwi_(w)=6pF,C_(w_(0))=8pF
Beta =250, ro =20 kohms, Cbe=40pF,Cbc=10pF,Cce=1.5pF Vcc=22V,Cs=11uF,Cc=1uF,Ce=25uF,Rs=1kohms,R1=40kohms
R2=15 kohms, Rc=5 kohms, Re=2.5 kohms, RL=2.5 kohms
