(Solved): Develop a Signal Timing Plan for the intersection of Route 20 with Millbury Street in Auburn for th ...

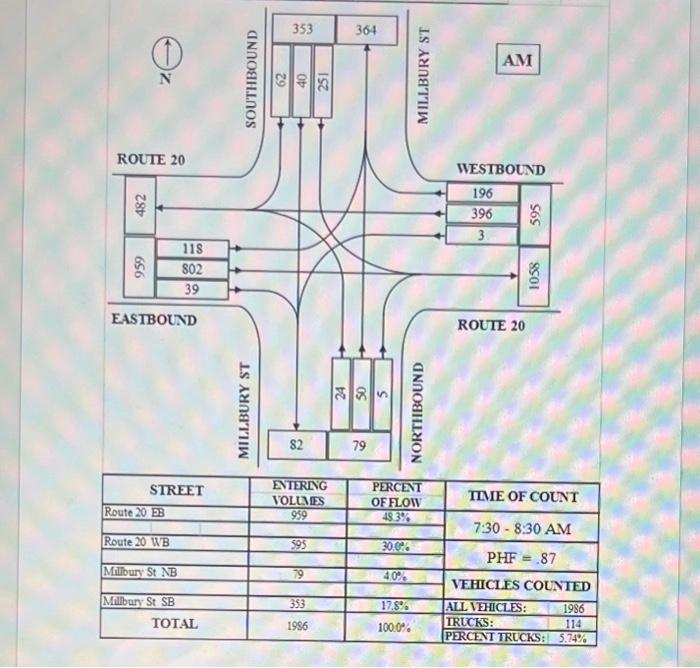

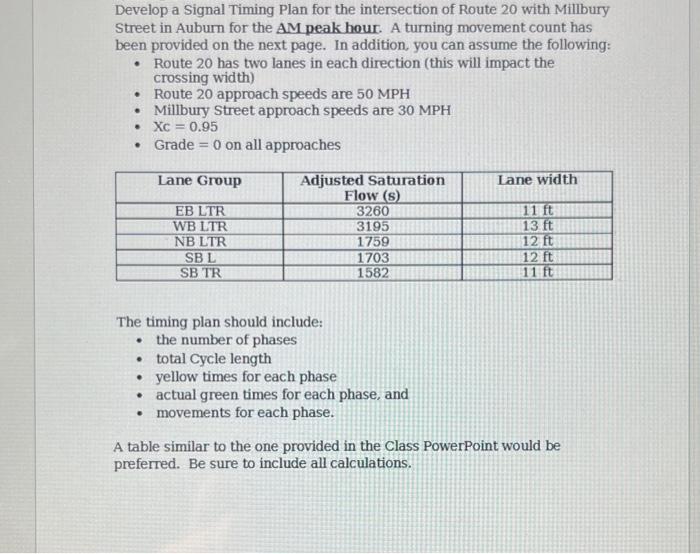

Develop a Signal Timing Plan for the intersection of Route 20 with Millbury Street in Auburn for the AM peak hour. A turning movement count has been provided on the next page. In addition, you can assume the following: - Route 20 has two lanes in each direction (this will impact the crossing width) - Route 20 approach speeds are $50\mathrm{MPH}$ - Millbury Street approach speeds are $30\mathrm{MPH}$ - $\mathrm{Xc}=0.95$ - Grade $=0$ on all approaches The timing plan should include: - the number of phases - total Cycle length - yellow times for each phase - actual green times for each phase, and - movements for each phase. A table similar to the one provided in the Class PowerPoint would be preferred. Be sure to include all calculations.
