(Solved): Do not draw the individual gates of the Multiplexor; use the logic symbol from the course note for ...

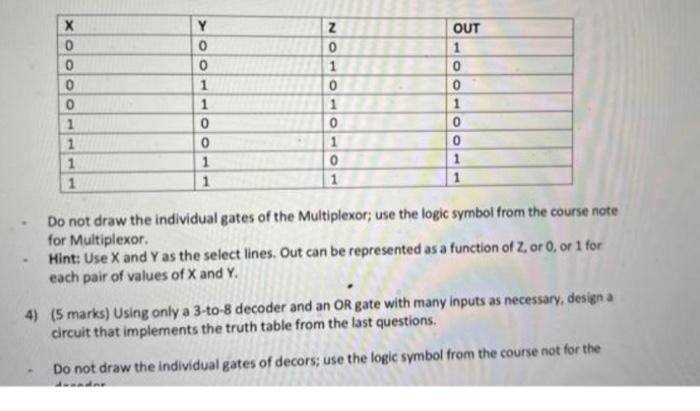

Do not draw the individual gates of the Multiplexor; use the logic symbol from the course note for Multiplexor. Hint: Use $$X$$ and $$Y$$ as the select lines. Out can be represented as a function of $$Z$$, or 0 , or 1 for each pair of values of $$X$$ and $$Y$$. 4) (5 marks) Using only a 3-to-8 decoder and an OR gate with many inputs as necessary, design a circuit that implements the truth table from the last questions. - Do not draw the individual gates of decors; use the logic symbol from the course not for the
