(Solved): Draw an NFA for recognizing all binary strings where either - The third bit from the right is 1 , o ...

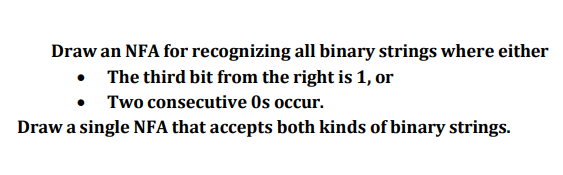

Draw an NFA for recognizing all binary strings where either - The third bit from the right is 1 , or - Two consecutive 0s occur. Draw a single NFA that accepts both kinds of binary strings.
Expert Answer
Given alphabet: ? = 0,1States: A,B,C,D,E,FInitial State: AFinal State: D,F The NFA has to recognize strings that satisfy either of the two criteria, ie. the third bit from the right is 1, or it has two consecutive zeros.The NFA mentioned below accept...
