(Solved): - Draw and completely label the corresponding 1-D steady-state conduction thermal resistor diagram ...

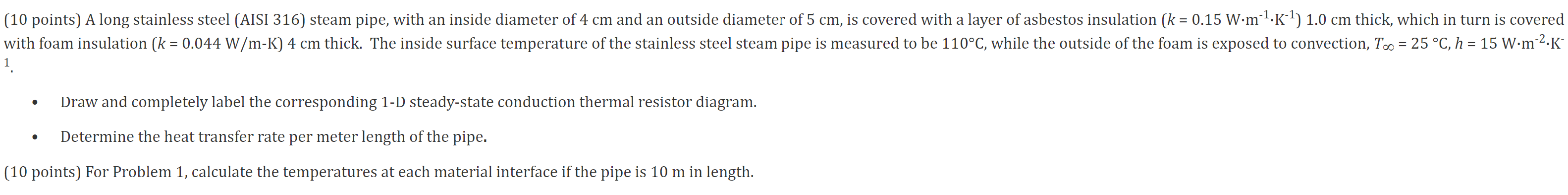

- Draw and completely label the corresponding 1-D steady-state conduction thermal resistor diagram. - Determine the heat transfer rate per meter length of the pipe. (10 points) For Problem 1, calculate the temperatures at each material interface if the pipe is $$10\mathrm{m}$$ in length.
