Draw the circuit of a boost chopper. Design a boost chopper for an input of vollage of $60 V$ with current ripple of $10%$ and voltage ripple of $20%$ with a switching frequency of $10 KHz$ Calculate the output voltage for duty cycle (i) 0.5 (II) 0.8 [12Marks]

Question

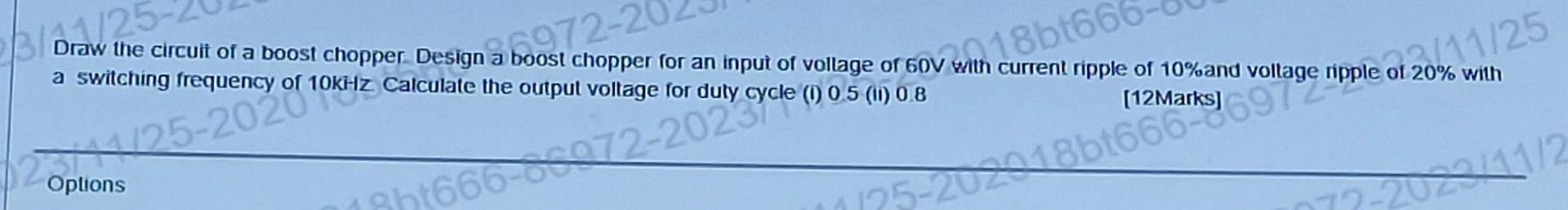

student submitted image, transcription available below

Draw the circuit of a boost chopper. Design a boost chopper for an input of vollage of

60 V

with current ripple of

10%

and voltage ripple of

20%

with a switching frequency of

10 KHz

Calculate the output voltage for duty cycle (i) 0.5 (II) 0.8 [12Marks]
