(Solved): Draw the shear and moment diagram of the beam below using equation method. 6.9 The intensity of th ...

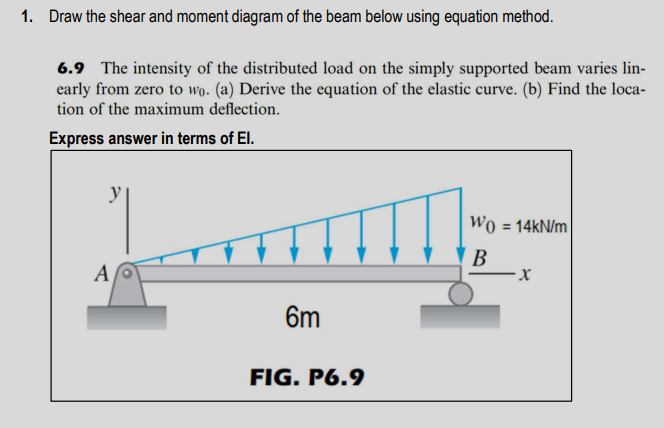

Draw the shear and moment diagram of the beam below using equation method. 6.9 The intensity of the distributed load on the simply supported beam varies linearly from zero to . (a) Derive the equation of the elastic curve. (b) Find the location of the maximum deflection.
Expert Answer
Free Body Diagram:Use equilibrium equations to find reactions.?Fx=0?HA=0kN?Fy=0?RA+RB=12×6×14?RA+RB=42kN(eq1)?MA=0?RB×6=12×6×14×23×6?RB=28kN(eq2)Subst
