(Solved): Draw the shear diagram for the cantilever beam Click on "add vertical line off" to add discontinuit ...

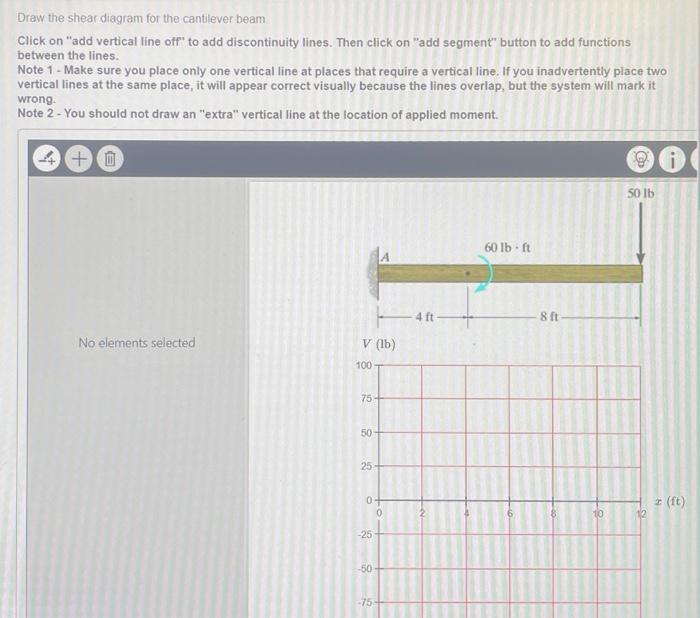

Draw the shear diagram for the cantilever beam Click on "add vertical line off" to add discontinuity lines. Then click on "add segment" button to add functions between the lines. Note 1 - Make sure you place only one vertical line at places that require a vertical line. If you inadvertently place two vertical lines at the same place, it will appear correct visually because the lines overlap, but the system will mark it wrong. Note 2-You should not draw an "extra" vertical line at the location of applied moment.
