(Solved): Draw the top view, section and enlarged detail B-B as shown below and demonstrated during class. U ...

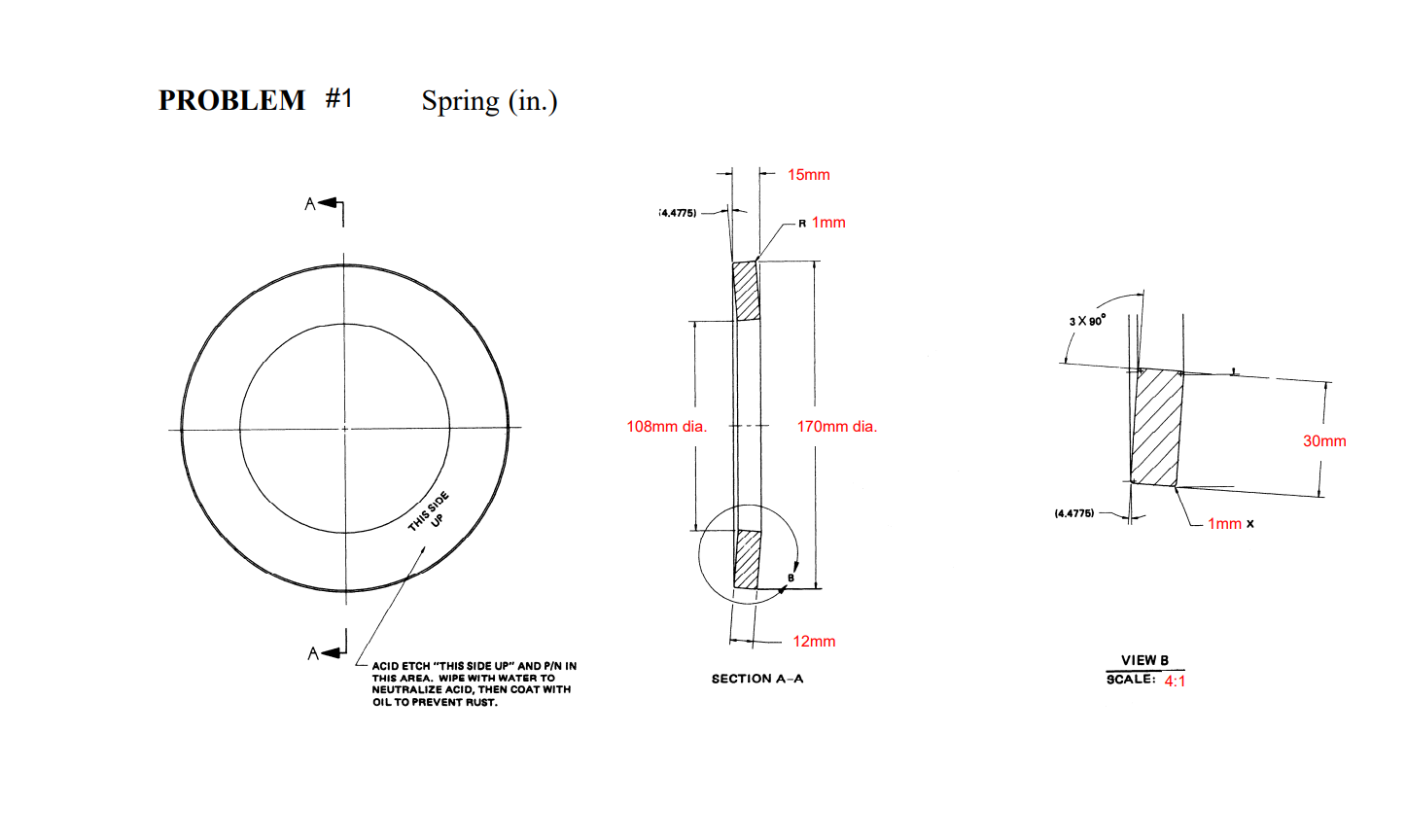

Draw the top view, section and enlarged detail B-B as shown below and demonstrated during class. Use an appropriate title block and ensure all the annotative scales are set up properly in your text style, dimension style and hatch style. \( \frac{\text { VIEW B }}{\text { 3CALE: } 4: 1} \)
