(Solved): ease show clear workings and state all assumptions made Electrically heated draw batch furnaces are ...

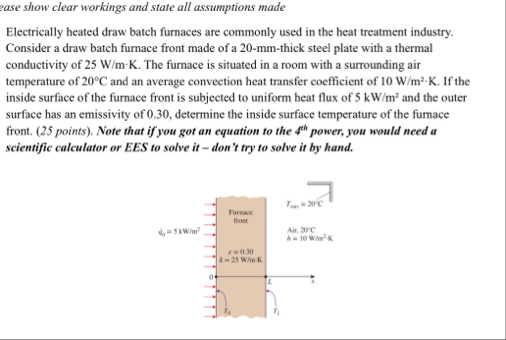

ease show clear workings and state all assumptions made Electrically heated draw batch furnaces are commonly used in the heat treatment industry. Consider a draw batch furnace front made of a

20-mm

-thick steel plate with a thermal conductivity of

25(W)/(m)*K

. The furnace is situated in a room with a surrounding air temperature of

20\deg C

and an average convection heat transfer coefficient of

10(W)/(m^(2))*K

. If the inside surface of the furnace front is subjected to uniform heat flux of

5k(W)/(m^(2))

and the outer surface has an emissivity of 0.30 , determine the inside surface temperature of the furnace front. ( 25 points). Note that if you got an equation to the

4^(th )

power, you would need a scientific calculator or EES to solve it - don't try to solve it by hand.
