(Solved): EHF3701-2024-Major Test IF YOU HAVE THE OPINION THAT INSUFFICIENT INFORMATION IS SUPPLIED FOR YOU TO ...

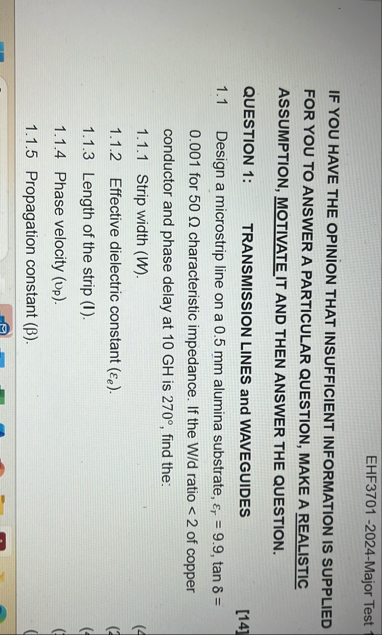

EHF3701-2024-Major Test IF YOU HAVE THE OPINION THAT INSUFFICIENT INFORMATION IS SUPPLIED FOR YOU TO ANSWER A PARTICULAR QUESTION, MAKE A REALISTIC ASSUMPTION, MOTIVATE IT AND THEN ANSWER THE QUESTION. QUESTION 1: TRANSMISSION LINES and WAVEGUIDES [14] 1.1 Design a microstrip line on a 0.5 mm alumina substrate,

\epsi _(r)=9.9

, tan

\delta =

0.001 for

50\Omega

characteristic impedance. If the W/d ratio < 2 of copper conductor and phase delay at 10 GH is

270\deg

, find the: 1.1.1 Strip width (

W

). 1.1.2 Effective dielectric constant

(\epsi _(e))

. 1.1.3 Length of the strip (I). 1.1.4 Phase velocity

(v_(p))

. 1.1.5 Propagation constant

(\beta )

.
