(Solved): Example 2.1. A ten stage Cockraft-Walton circuit has all capacitors of 0.06\mu F. The secondary volt ...

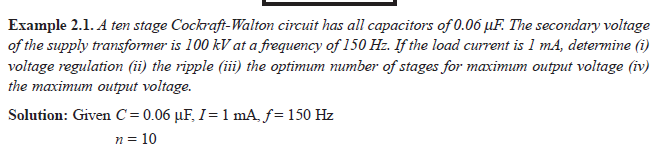

Example 2.1. A ten stage Cockraft-Walton circuit has all capacitors of 0.06\mu F. The secondary voltage of the supply transformer is 100 kV at a frequency of 150 Hz . If the load current is 1 mA , determine (i) voltage regulation (ii) the ripple (iii) the optimum number of stages for maximum output voltage (iv) the maximum output voltage. Solution: Given C=0.06\mu F,I=1mA,f=150Hz n=10
