(Solved): Example Consider the RL and RC circuits shown in Fig. 5.5 (c,d), respectively. Switch in each circui ...

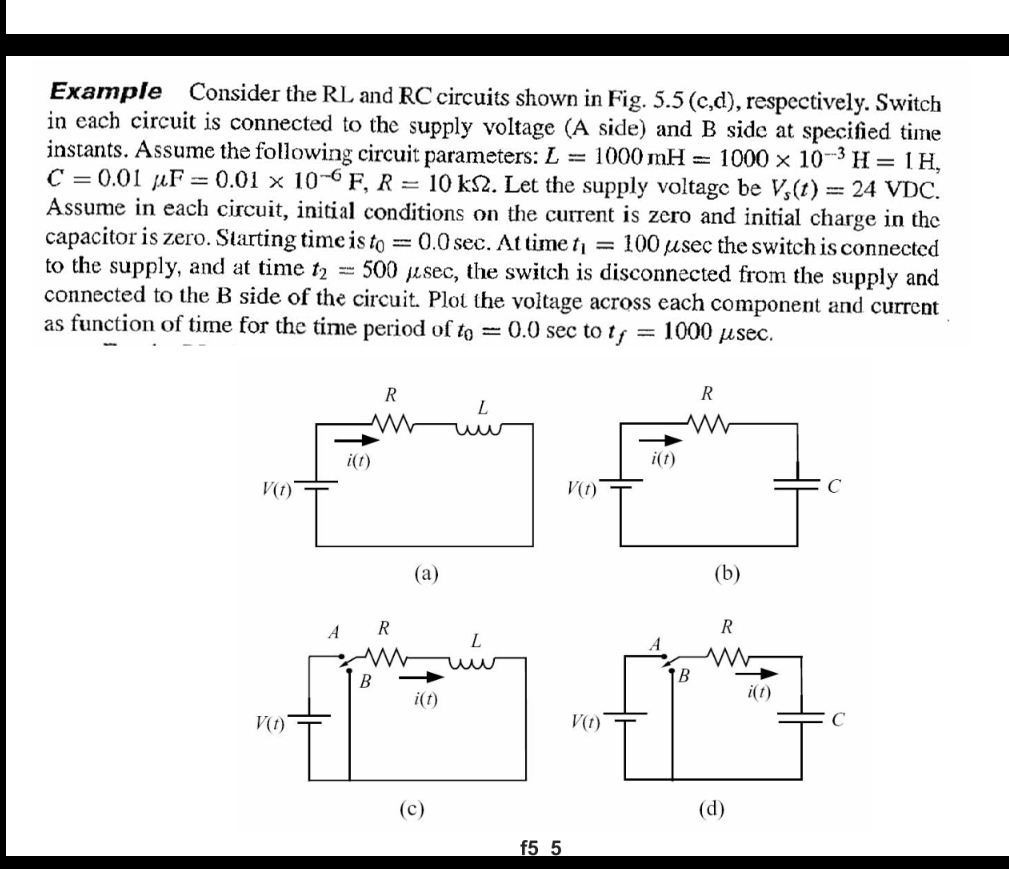

Example Consider the RL and RC circuits shown in Fig. 5.5 (c,d), respectively. Switch in each circuit is connected to the supply voltage (A side) and
Bside at specified time instants. Assume the following circuit parameters:
L=1000mH=1000\times 10^(-3)H=1H,
C=0.01\mu F=0.01\times 10^(-6)F,R=10k\Omega . Let the supply voltage be
V_(s)(t)=24VDC. Assume in each circuit, initial conditions on the current is zero and initial charge in the capacitor is zero. Starting time is
t_(0)=0.0sec. At time
t_(1)=100\mu secthe switch is connected to the supply, and at time
t_(2)=500\mu sec, the switch is disconnected from the supply and connected to the
Bside of the circuit. Plot the voltage across each component and current as function of time for the time period of
t_(0)=0.0secto
t_(f)=1000\mu sec. (a)
