EXPLAIN HOW I CAN KNOW THE DIRECTION OF MOMENT

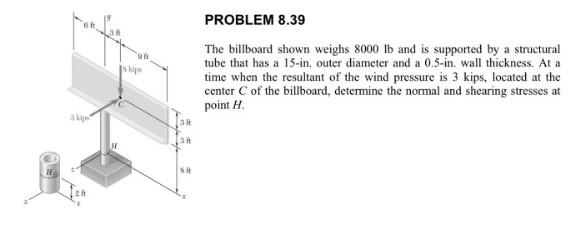

The billboard shown weighs $8000 lb$ and is supported by a structural tube that has a 15 -in. outer diameter and a 0.5 -in. wall thickness. At a time when the resultant of the wind pressure is 3 kips, located at the center $C$ of the billboard, determine the normal and shearing stresses at point $H$ .

Question

student submitted image, transcription available below

EXPLAIN HOW I CAN KNOW THE DIRECTION OF MOMENT

The billboard shown weighs

8000 lb

and is supported by a structural tube that has a 15 -in. outer diameter and a 0.5 -in. wall thickness. At a time when the resultant of the wind pressure is 3 kips, located at the center

C

of the billboard, determine the normal and shearing stresses at point

H

.

Accepted Answer

Expert Answer to -     EXPLAIN HOW I CAN KNOW  THE DIRECTION OF MOMENT  The billboard shown weighs 8000lb and is suppor
