Fast Rating frequency analysis

Solve each i just selected to show example

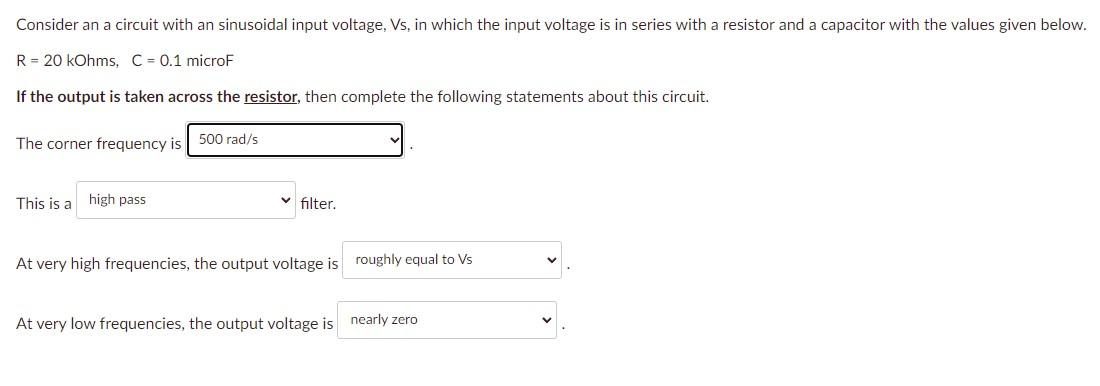

Consider an a circuit with an sinusoidal input voltage, Vs, in which the input voltage is in series with a resistor and a capacitor with the values given below. R = 20 kOhms, C = 0.1 microF If the output is taken across the resistor, then complete the following statements about this circuit. The corner frequency is 500 rad/s This is a high pass ? filter. At very high frequencies, the output voltage is roughly equal to Vs At very low frequencies, the output voltage is nearly zero
