(Solved): Figure 13: The Current Mirror and Test Circuit 1. Given the circuit in Figure 13, derive an equati ...

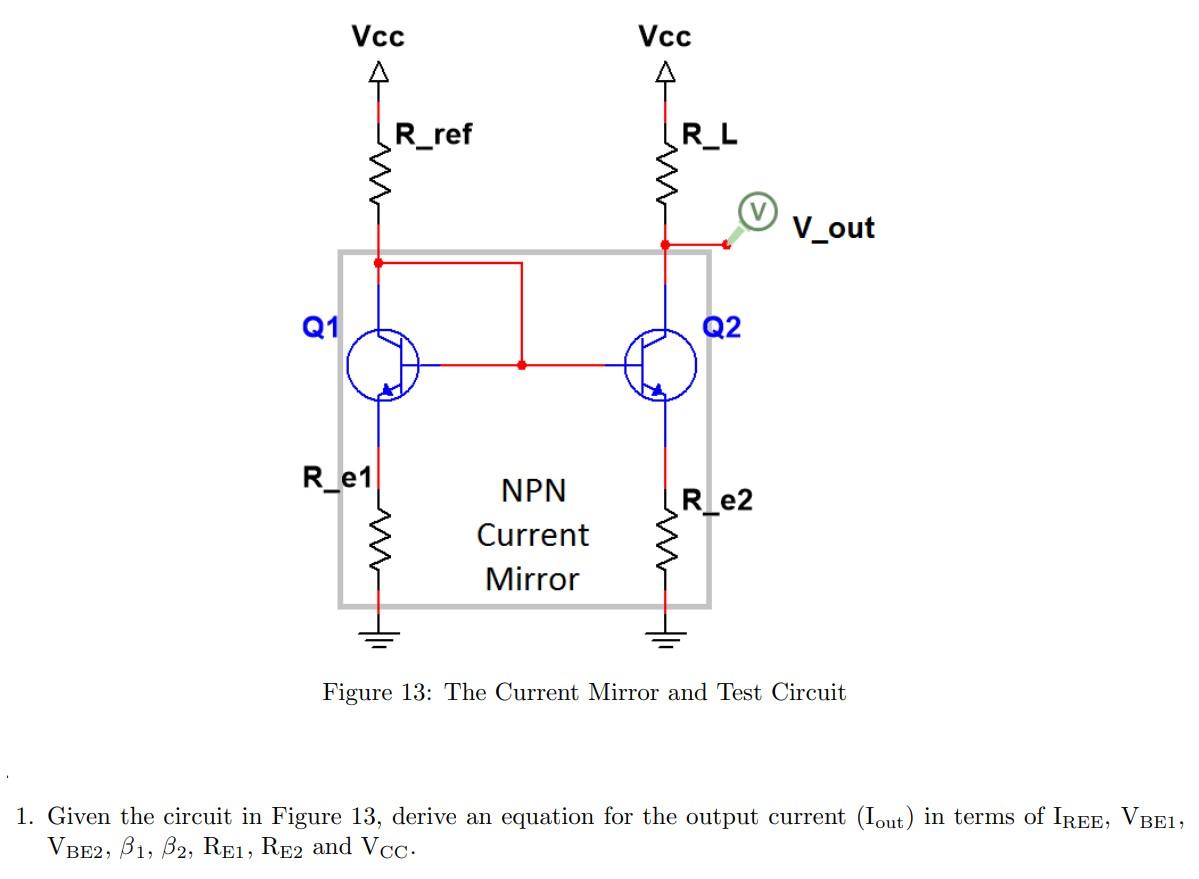

Figure 13: The Current Mirror and Test Circuit 1. Given the circuit in Figure 13, derive an equation for the output current ( \( \mathrm{I}_{\mathrm{out}} \) ) in terms of \( \mathrm{I}_{\mathrm{REE}}, \mathrm{V}_{\mathrm{BE} 1} \), \( \mathrm{V}_{\mathrm{BE} 2}, \beta_{1}, \beta_{2}, \mathrm{R}_{\mathrm{E} 1}, \mathrm{R}_{\mathrm{E} 2} \) and \( \mathrm{V}_{\mathrm{CC}} \)
