(Solved): Figure (a) shows a stair system with landing. In Figure (b), the idealized version of this stair sys ...

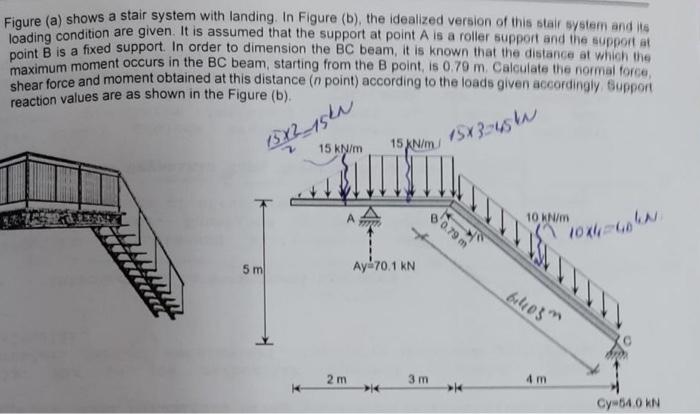

Figure (a) shows a stair system with landing. In Figure (b), the idealized version of this stair system and its loading condition are given. It is assumed that the support at point A is a roller support and the support at point B is a fixed support. In order to dimension the BC beam, it is known that the distance at which the maximum moment occurs in the BC beam, starting from the B point, is 0.79 m. Calculate the normal force, shear force and moment obtained at this distance (n point) according to the loads given accordingly. Support reaction values are as shown in the Figure (b).
Figure (a) shows a stair system with landing. In Figure (b), the idealized version of this stair system and its loading condition are given. It is assumed that the support at point A is a roller suppoit and the suppont at point is a fixed support. In order to dimension the BC beam, it is known that the distance at which the maximum moment occurs in the BC beam, starting from the point, is . Calculate the normal force shear force and moment obtained at this distance ( point) according to the loads given accordingly 0upport
