(Solved): Figure Q3 shows NPN BJT with a common-base configuration. Design the circuit so that a current of 2m ...

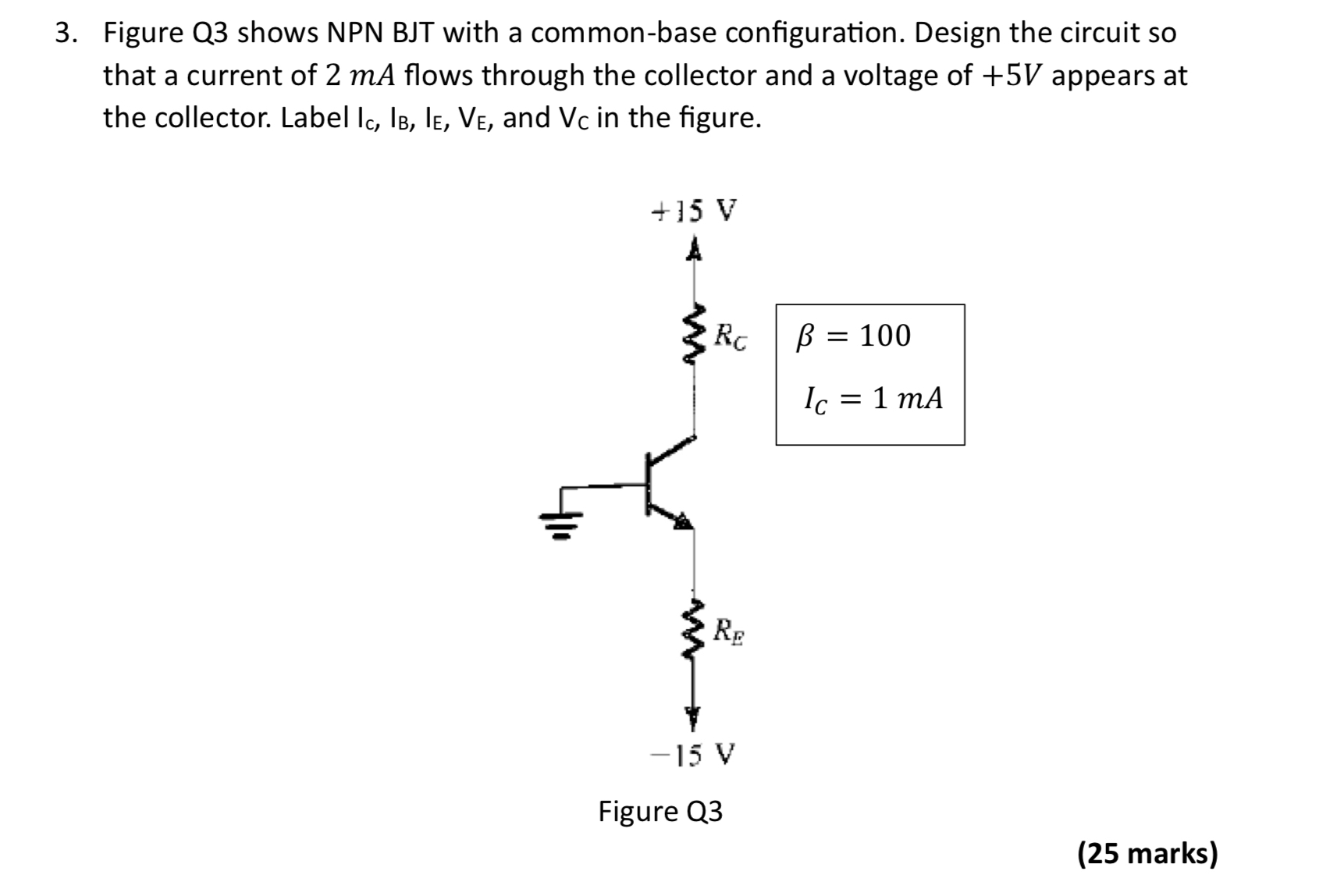

Figure Q3 shows NPN BJT with a common-base configuration. Design the circuit so that a current of
2mAflows through the collector and a voltage of
+5Vappears at the collector. Label
I_(C),I_(B),I_(E),V_(E), and
V_(C)in the figure. Figure Q3 (25 marks)
