(Solved): :Find the flow rate, Q, between two reservoirs connected by two pipes in series with different diame ...

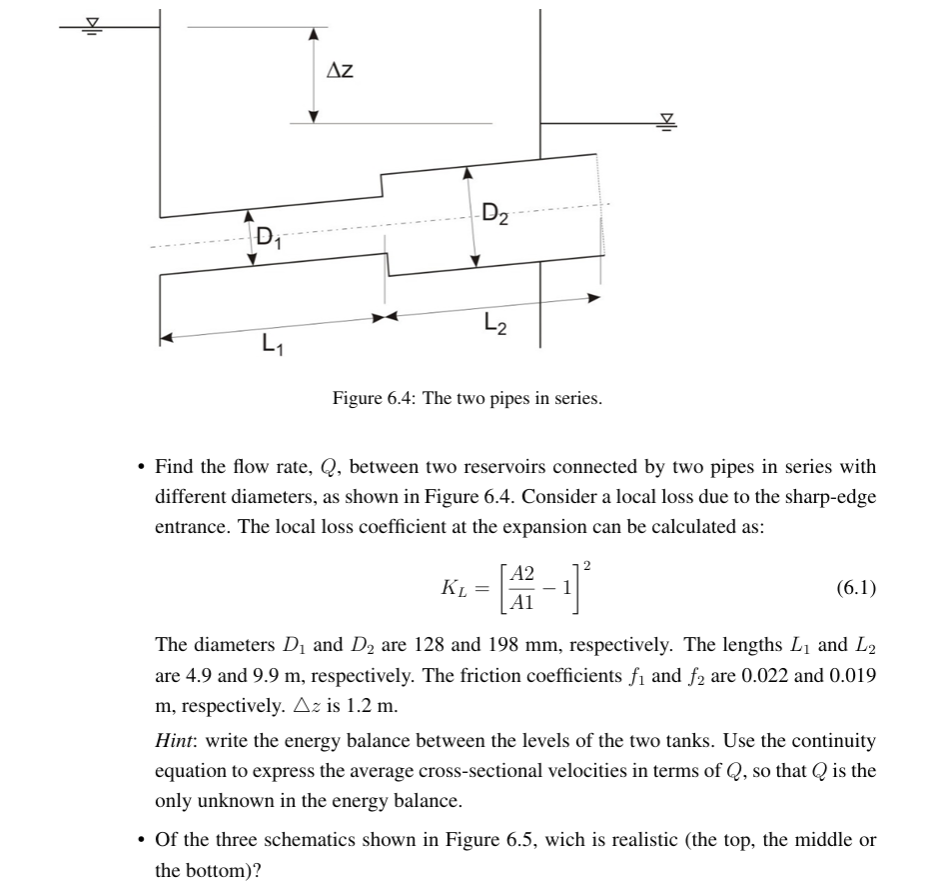

:Find the flow rate, Q, between two reservoirs connected by two pipes in series with different diameters, as shown in Figure 6.4. Consider a local loss due to the sharp-edge entrance. The local loss coefficient at the expansion can be calculated as: Figure 6.4: The two pipes in series. Find the flow rate, Q, between two reservoirs connected by two pipes in series with different diameters, as shown in Figure 6.4. Consider a local loss due to the sharp-edge entrance. The local loss coefficient at the expansion can be calculated as: K_(L)=[(A2)/(A1)-1]^(2) The diameters D_(1) and D_(2) are 128 and 198 mm , respectively. The lengths L_(1) and L_(2) are 4.9 and 9.9 m , respectively. The friction coefficients f_(1) and f_(2) are 0.022 and 0.019 m , respectively. \Delta z is 1.2 m . Hint: write the energy balance between the levels of the two tanks. Use the continuity equation to express the average cross-sectional velocities in terms of Q, so that Q is the only unknown in the energy balance. Of the three schematics shown in Figure 6.5, wich is realistic (the top, the middle or the bottom)?


We have an Answer from Expert

View Expert Answer
