(Solved): Find the resultant of the forces for the system shown in Figure 3. Values for corresponding forces ...

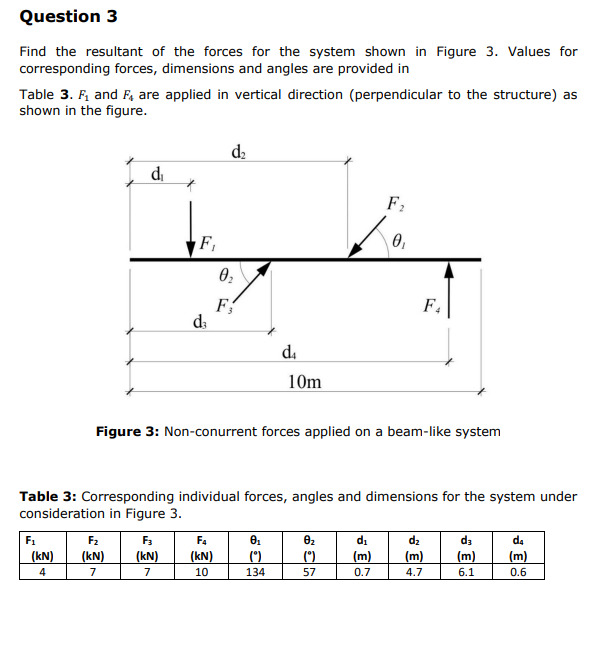

Find the resultant of the forces for the system shown in Figure 3. Values for corresponding forces, dimensions and angles are provided in Table 3. \( F_{1} \) and \( F_{4} \) are applied in vertical direction (perpendicular to the structure) as shown in the figure. Figure 3: Non-conurrent forces applied on a beam-like system Table 3: Corresponding individual forces, angles and dimensions for the system under consideration in Figure 3 .
