flem 2: (10 Points) The single-phase full-wave ac-controller in Fig. 2 supplies an RL-load. The input rms voltage is 230-V,60 Hz . The load such that L=26.525mH&R=10- Omega . If the load is consumed 50% of the rated power, calculate: (a) The conduction angle gamma and firing angles alpha . (b) Calculate the rms output voltage. (c) The input solutionspile.com

Question

flem 2: (10 Points) The single-phase full-wave ac-controller in Fig. 2 supplies an RL-load. The input rms voltage is

230-V,60

Hz . The load such that

L=26.525mH&R=10-\Omega

. If the load is consumed

50%

of the rated power, calculate: (a) The conduction angle

\gamma

and firing angles

\alpha

. (b) Calculate the rms output voltage. (c) The input power factors. (3 points) (d) Draw the load voltage and find the average voltage across T2. (1 point) (1 point) (e) Find the rating of T 1 and T 2 (PIV, average current. rms current and peak current). (2 points) (3 points)

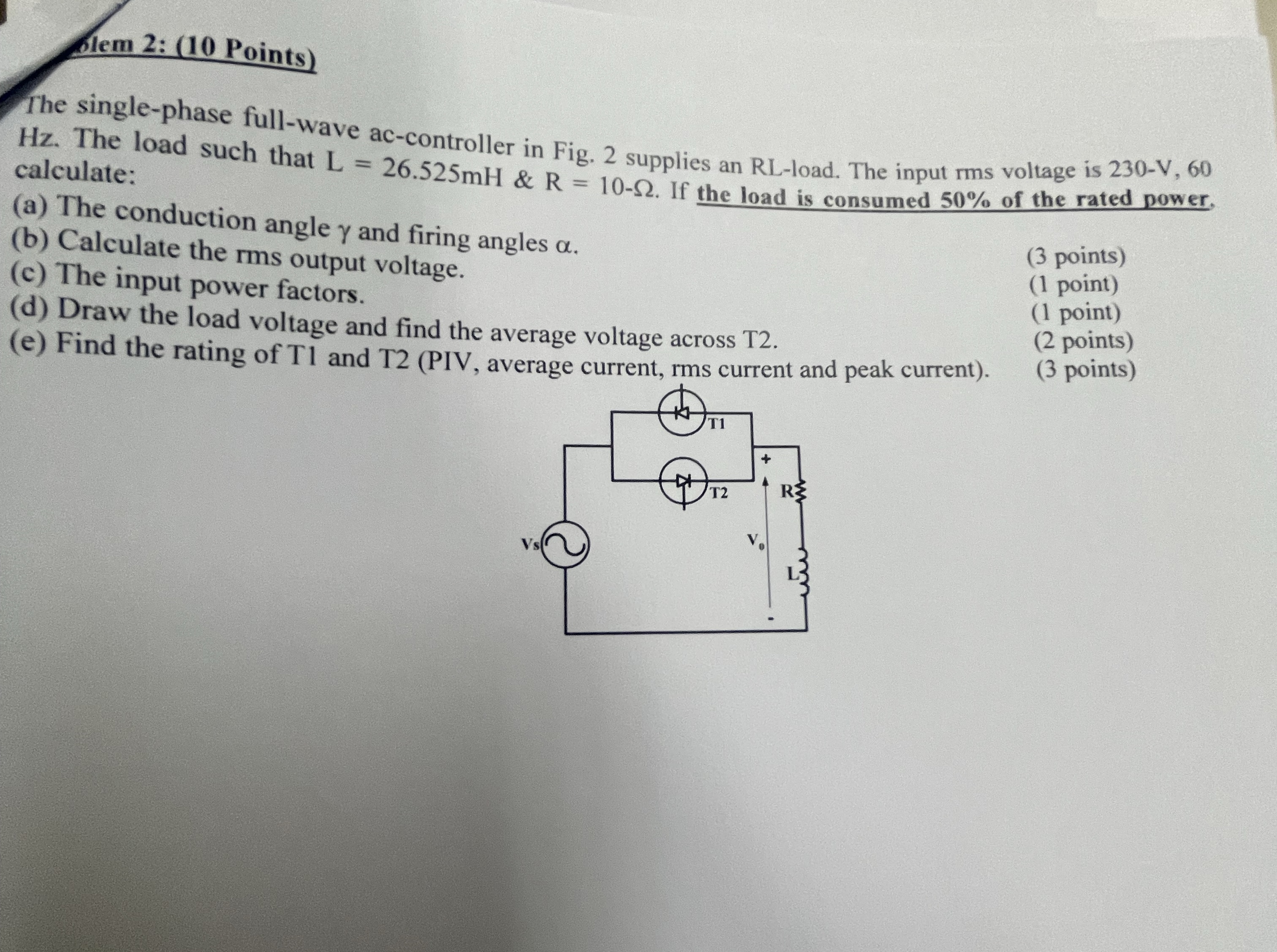

student submitted image, transcription available below
