(Solved): FOR THE BEAM SHOLIN ABOVE: DETERMINE THE 3 REACTIONS. DRAH THE SHEN DIAGRAM. ORAM TIHE MOMENT PIRARR ...

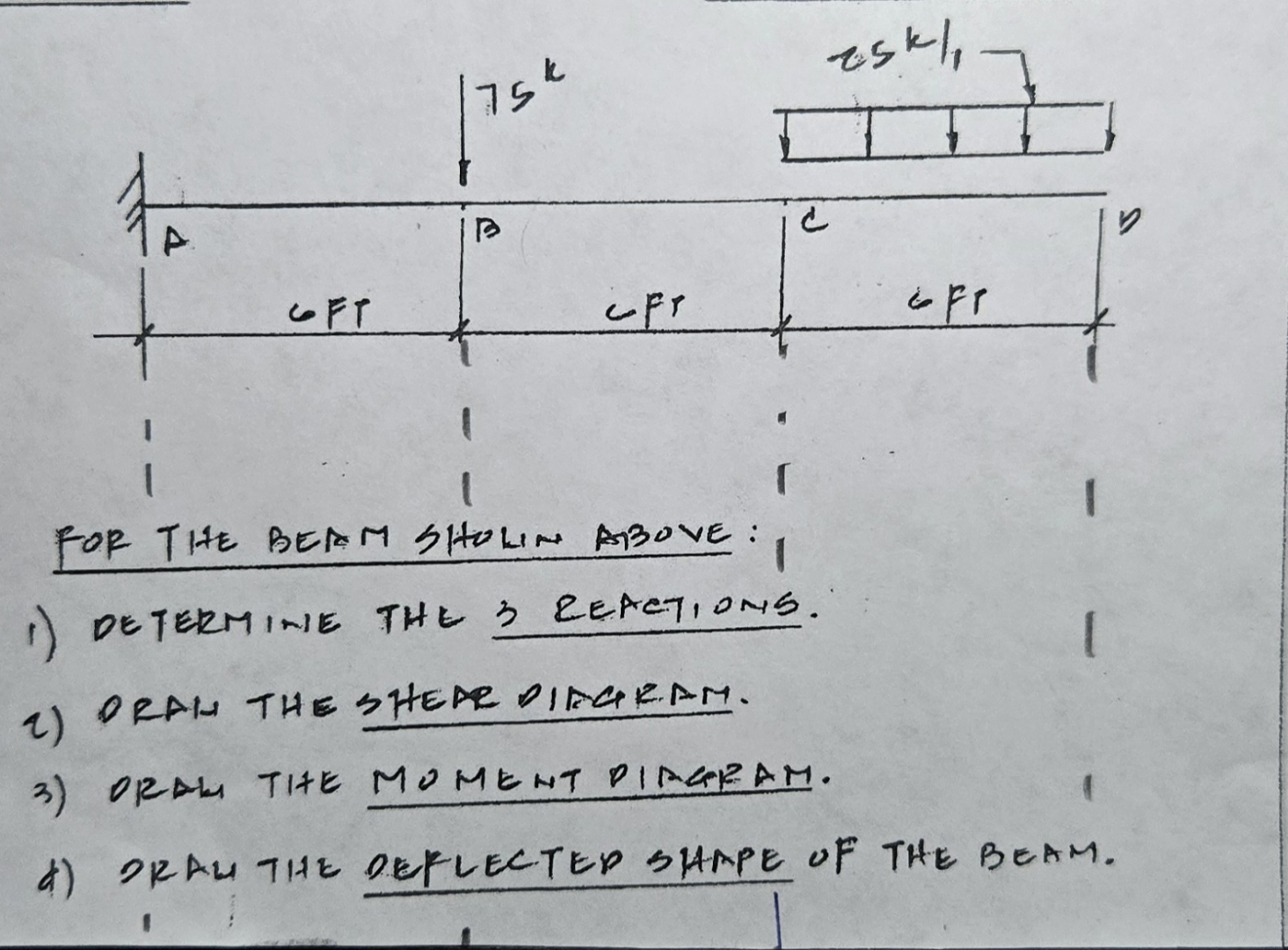

FOR THE BEAM SHOLIN ABOVE: DETERMINE THE 3 REACTIONS. DRAH THE SHEN DIAGRAM. ORAM TIHE MOMENT PIRARRAM. d) DRAU THE OEFLECTED SHAPE OF THE BEAM. show all work and steps for each part for a better understanding.
