(Solved): For the beam shown below, answer the following questions: a) Determine the deflection along the bea ...

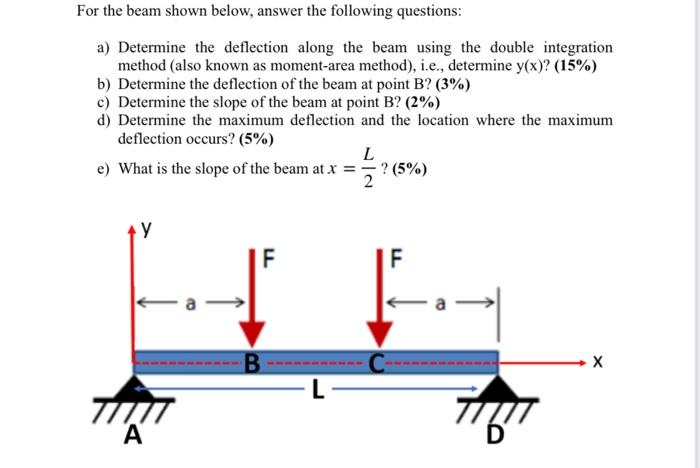

For the beam shown below, answer the following questions: a) Determine the deflection along the beam using the double integration method (also known as moment-area method), i.e., determine $$y(\mathrm{x})$$ ? (15\%) b) Determine the deflection of the beam at point B? $$(3\%)$$ c) Determine the slope of the beam at point B? ( $$2\%)$$ d) Determine the maximum deflection and the location where the maximum deflection occurs? $$(5\%)$$ e) What is the slope of the beam at $$x=\frac{L}{2}$$ ? $$(5\%)$$
