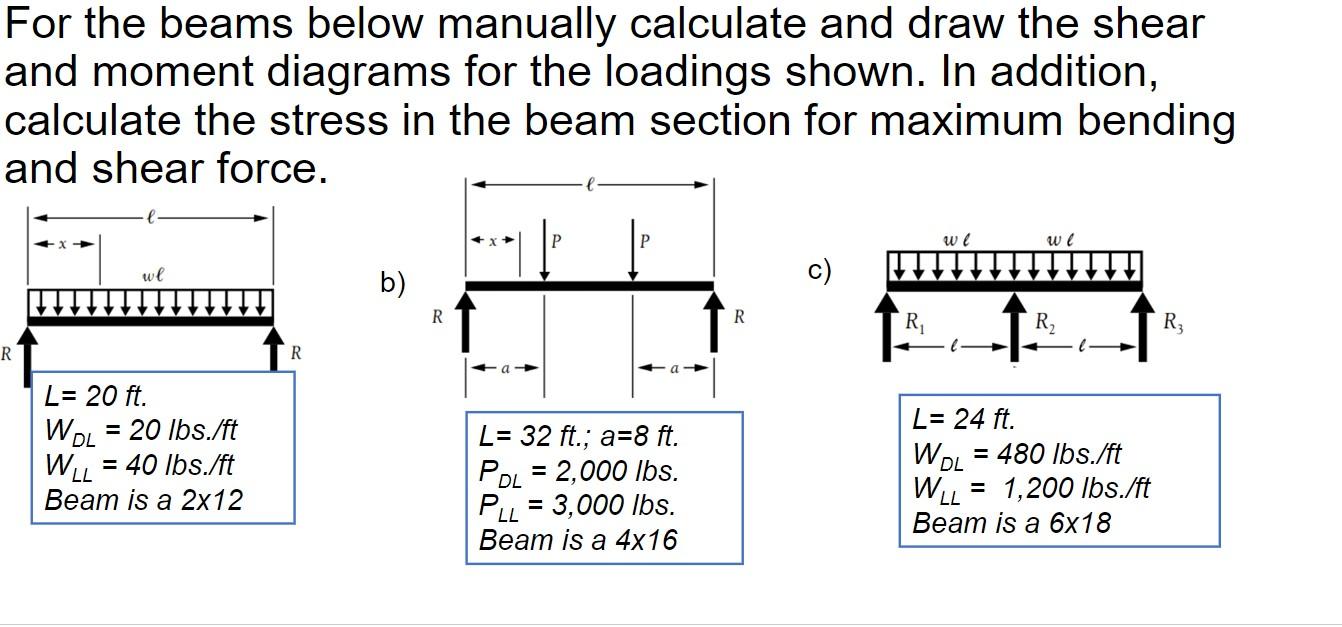

For the beams below manually calculate and draw the shear and moment diagrams for the loadings shown. In addition, calculate the stress in the beam section for maximum bending and shear force. b) c) \[ \begin{array}{|l|} \hline L=32 \mathrm{ft}, ; a=8 \mathrm{ft} . \\ P_{D L}=2,000 \mathrm{lbs} . \\ P_{L L}=3,000 \mathrm{lbs} . \\ \text { Beam is a } 4 \times 16 \\ \hline \end{array} \]
