(Solved): For the circuit in the given figure, use KVL to find the branch voltages V_(1) to V_(4). Assume A=3V ...

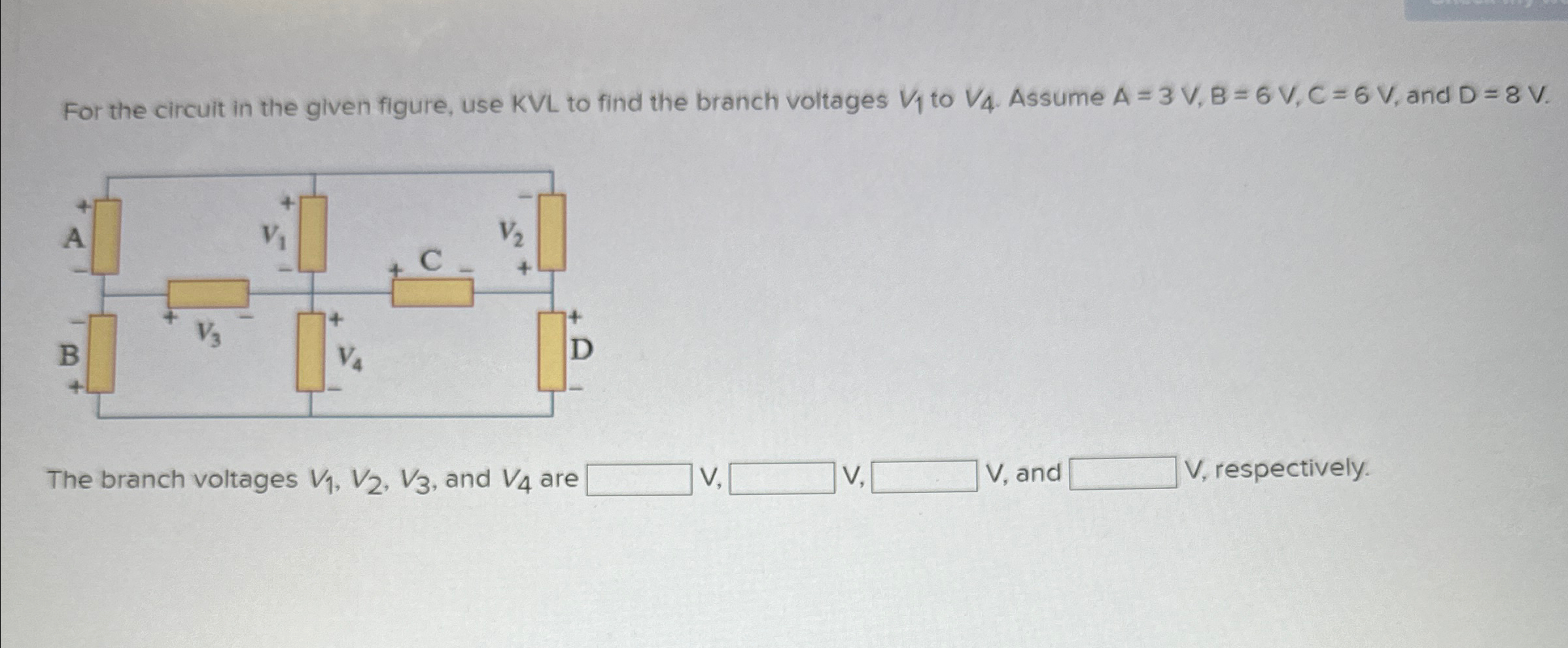

For the circuit in the given figure, use
KVLto find the branch voltages
V_(1)to
V_(4). Assume
A=3V,B=6V,C=6V, and
D=8V. The branch voltages
V_(1),V_(2),V_(3), and
V_(4)are
?V,
?V,
?
V, and
?
V, respectively.
