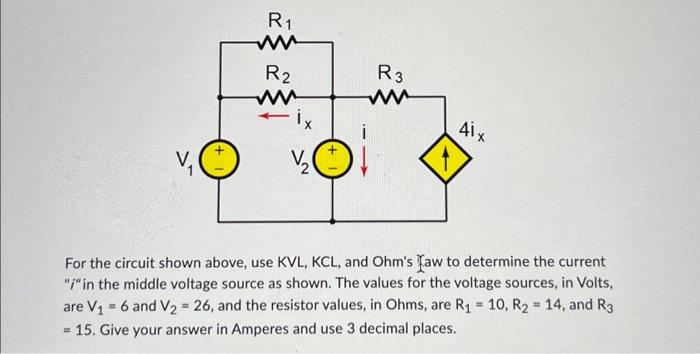

For the circuit shown above, use KVL, KCL, and Ohm's ?aw to determine the current " $i$ " in the middle voltage source as shown. The values for the voltage sources, in Volts, are $V_{1} = 6$ and $V_{2} = 26$ , and the resistor values, in Ohms, are $R_{1} = 10, R_{2} = 14$ , and $R_{3}$ $= 15$ . Give your answer in Amperes and use 3 decimal places.

Question

For the circuit shown above, use KVL, KCL, and Ohm's ?aw to determine the current "

i

" in the middle voltage source as shown. The values for the voltage sources, in Volts, are

V_{1} = 6

and

V_{2} = 26

, and the resistor values, in Ohms, are

R_{1} = 10, R_{2} = 14

, and

R_{3}

= 15

. Give your answer in Amperes and use 3 decimal places.
