foundation design

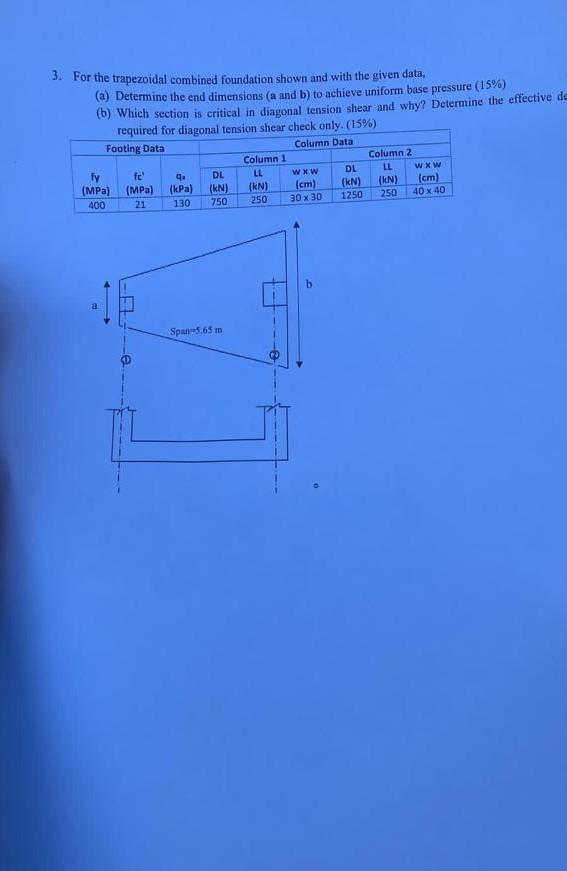

3. For the trapezoidal combined foundation shown and with the given data, (a) Determine the end dimensions ( $a$ and $b$ ) to achieve uniform base pressure ( $15%$ ) (b) Which section is critical in diagonal tension shear and why? Determine the effective df renuired for diamonal tension shear check only. (15\%)

Question

student submitted image, transcription available below

foundation design

3. For the trapezoidal combined foundation shown and with the given data, (a) Determine the end dimensions (

a

and

b

) to achieve uniform base pressure (

15%

) (b) Which section is critical in diagonal tension shear and why? Determine the effective df renuired for diamonal tension shear check only. (15\%)
