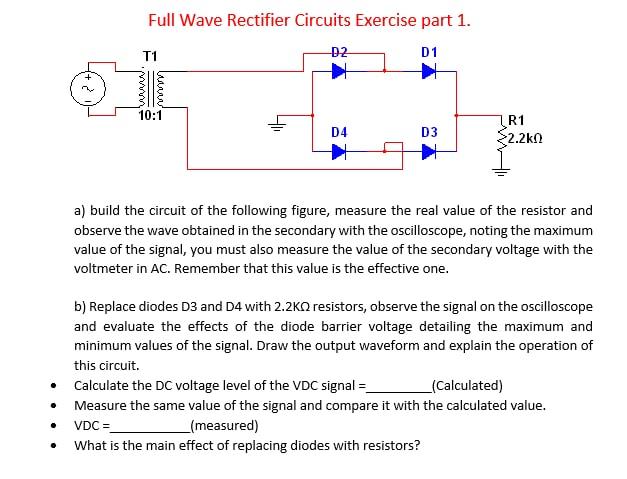

Full Wave Rectifier Circuits Exercise part \( 1 . \)
a) build the circuit of the following figure, measure the real value of

Full Wave Rectifier Circuits Exercise part \( 1 . \) a) build the circuit of the following figure, measure the real value of the resistor and observe the wave obtained in the secondary with the oscilloscope, noting the maximum value of the signal, you must also measure the value of the secondary voltage with the voltmeter in AC. Remember that this value is the effective one. b) Replace diodes D3 and D4 with \( 2.2 \mathrm{~K} \Omega \) resistors, observe the signal on the oscilloscope and evaluate the effects of the diode barrier voltage detailing the maximum and minimum values of the signal. Draw the output waveform and explain the operation of this circuit. Calculate the DC voltage level of the VDC signal \( =\quad \) (Calculated) Measure the same value of the signal and compare it with the calculated value. VDC \( = \) (measured) What is the main effect of replacing diodes with resistors?


We have an Answer from Expert

View Expert Answer

Expert Answer


We have an Answer from Expert

Buy This Answer $5
