(Solved): Geologic Cross Section (10 points) Draw a geological cross section from north to south along the bl ...

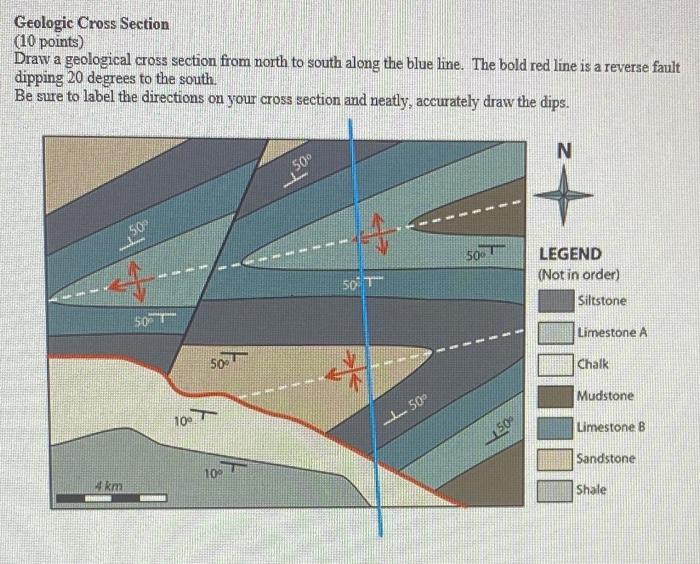

Geologic Cross Section (10 points) Draw a geological cross section from north to south along the blue line. The bold red line is a reverse fault dipping 20 degrees to the south. Be sure to label the directions on your cross section and neatly, accurately draw the dips.
