(Solved): help asap Acceleration Analysis_Relative Motion Method The mechanism shown in Figure is used to feed ...

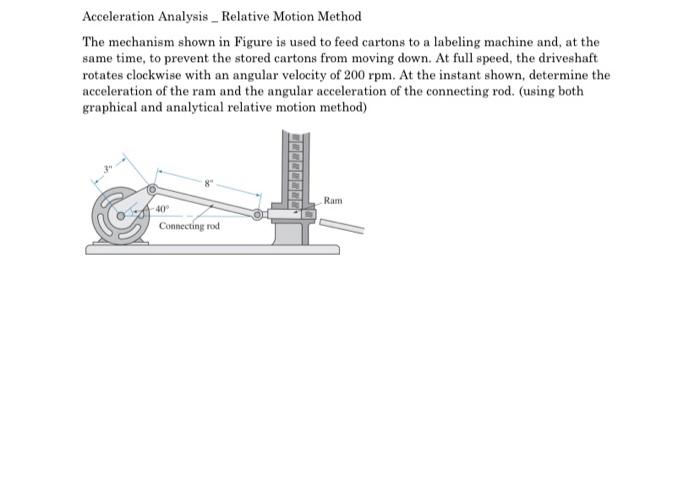

Acceleration Analysis_Relative Motion Method The mechanism shown in Figure is used to feed cartons to a labeling machine and, at the same time, to prevent the stored cartons from moving down. At full speed, the driveshaft rotates clockwise with an angular velocity of $$200\mathrm{rpm}$$. At the instant shown, determine the acceleration of the ram and the angular acceleration of the connecting rod. (using both graphical and analytical relative motion method)
