help with 7

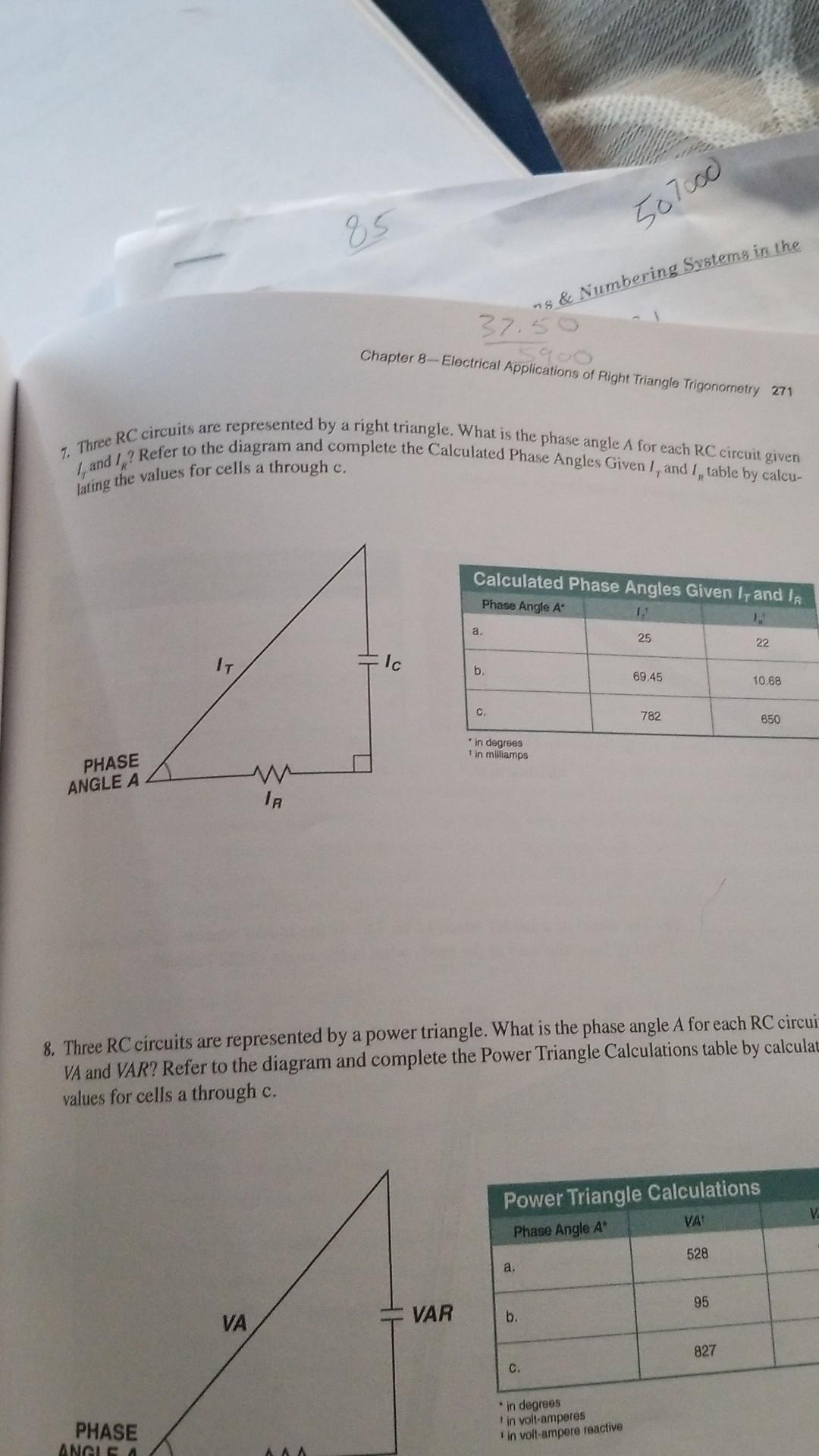

1. Three $\mathrm{RC}$ circuits are represented by a right triangle. What is the phase angle $A$ for each $\mathrm{RC}$ circuit given $I_T$ and $I_R$ ? Refer to the diagram and complete the Calculated Phase Angles Given $I_T$ and $I_R$ table by calculating the values for cells a through $\mathrm{c}$. 8. Three $\mathrm{RC}$ circuits are represented by a power triangle. What is the phase angle $A$ for each $\mathrm{RC}$ circui $VA$ and VAR? Refer to the diagram and complete the Power Triangle Calculations table by calcula values for cells a through $\mathrm{c}$. - in degrees $t$ in voll-amperes in volt-ampere reactive
