(Solved): How to solve Problem 3 Suppose cantilever beam 1 (CB1) has a circular cross-section with diameter ...



How to solve Problem 3 Suppose cantilever beam 1 (CB1) has a circular cross-section with diameter

d_(1)

, has a length

L_(1)

and is made of a material have density

\rho

. Another cantilever beam (CB2) has diameter

d_(2)=2d_(1)

and length

L_(2)

=2L_(1)

. Find the ratio of maximum bending stress in CB2 to the maximum bending stress in CB1.

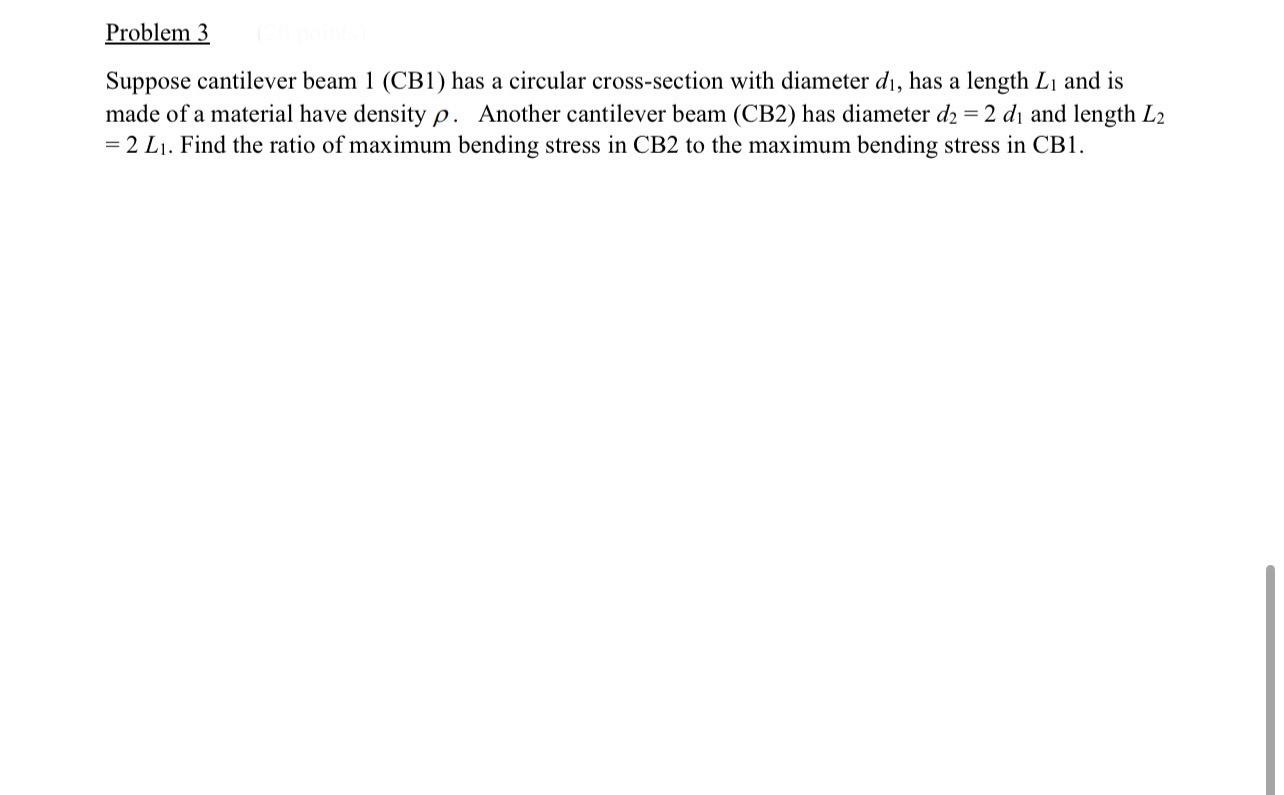

student submitted image, transcription available below
