(Solved): HW: Derive the expressions for the frequency of oscillation and the condition of oscillation. \( \ ...

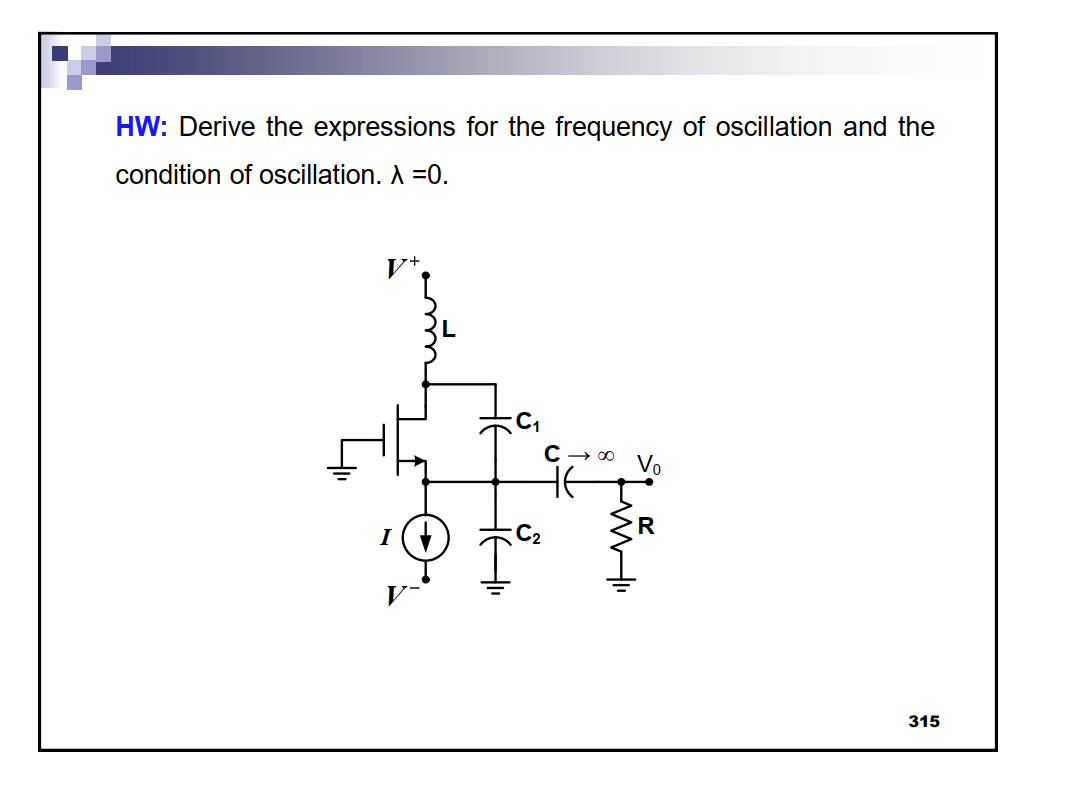

$HW: Derive the expressions for the frequency of oscillation and the condition of oscillation. \( \lambda=0 \).$

HW: Derive the expressions for the frequency of oscillation and the condition of oscillation. \( \lambda=0 \).

We have an Answer from Expert

View Expert Answer

Expert Answer

Given the condition of oscillation ?=0 Apply kcl at node V0 V01sC2+V0R+V0?V11SC1?gmV0=0 V0[sC2+1R+sC1]?[sC!]V1=?gmV0 V0[sC2+1R+sC1+gm]=(sC1)V1 ----
