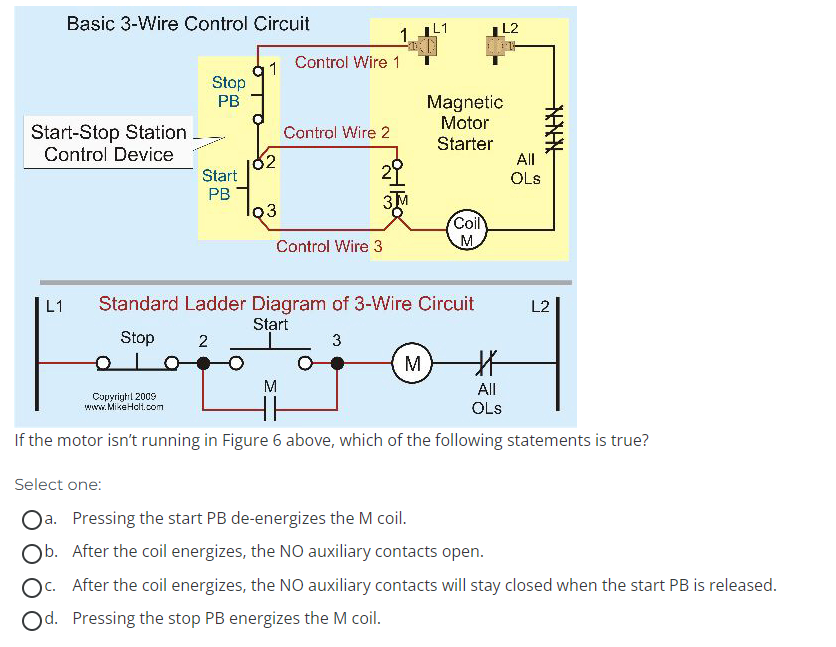

I L1 Standard Ladder Diagram of 3-Wire Circuit L2 I It the motor ?sn't runn?ng in F?gure 6 above, wh?ch of the tollowing statements is true? Select one: a. Pressing the start PB de-energizes the M coil. b. After the coil energizes, the NO auxiliary contacts open. c. After the coil energizes, the NO auxiliary contacts will stay closed when the start PB is released. d. Pressing the stop PB energizes the
M
coil.

Question

I L1 Standard Ladder Diagram of 3-Wire Circuit L2 I It the motor ?sn't runn?ng in F?gure 6 above, wh?ch of the tollowing statements is true? Select one: a. Pressing the start PB de-energizes the M coil. b. After the coil energizes, the NO auxiliary contacts open. c. After the coil energizes, the NO auxiliary contacts will stay closed when the start PB is released. d. Pressing the stop PB energizes the

M

coil.

Accepted Answer

Expert Answer to -  I L1 Standard Ladder Diagram of 3-Wire Circuit L2 I It the motor sn't runnng in Fgure 6 above

Answer

Solution for -  I L1 Standard Ladder Diagram of 3-Wire Circuit L2 I It the motor sn't runnng in Fgure 6 above

Answer

This an additional answer to -  I L1 Standard Ladder Diagram of 3-Wire Circuit L2 I It the motor sn't runnng in Fgure 6 above
