(Solved): i. V_(in )=12V. Redraw the circuit replacing the diodes with the ideal model according to whether th ...

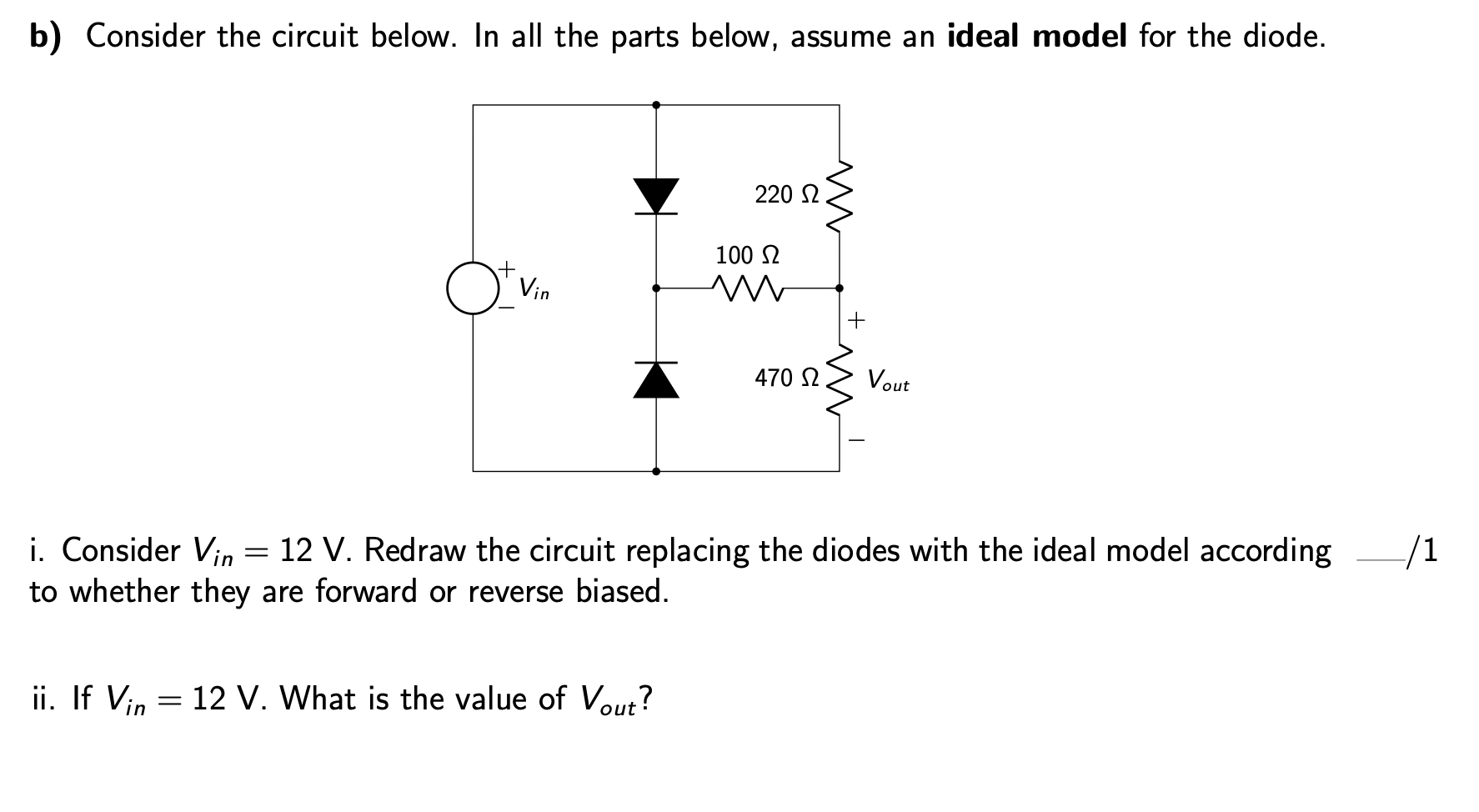

i. V_(in )=12V. Redraw the circuit replacing the diodes with the ideal model according to whether they are forward or reverse biased. ii. If V_(in )=12V. What is the value of V_(out ) ?
