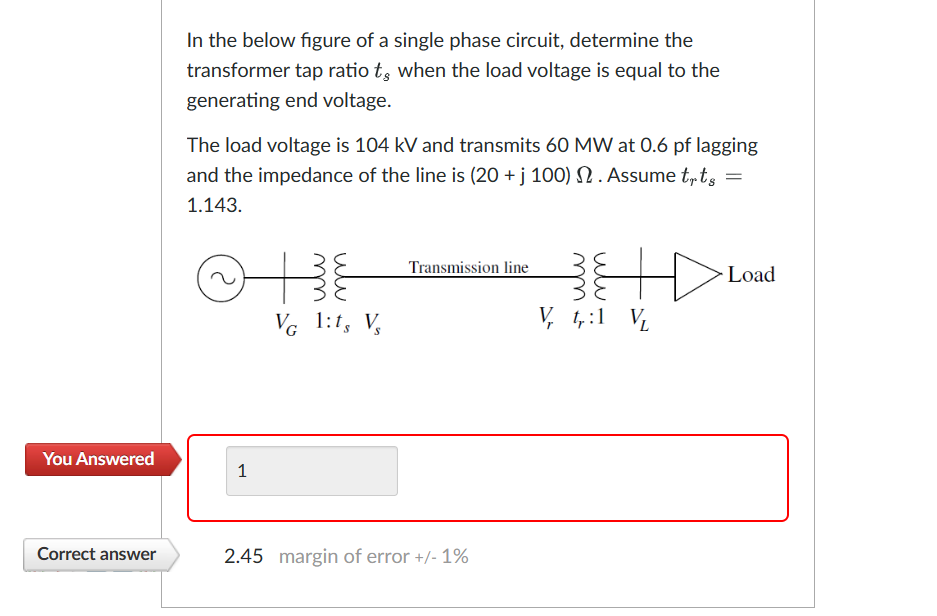

In the below figure of a single phase circuit, determine the transformer tap ratio
t_(s)
when the load voltage is equal to the generating end voltage. The load voltage is
104kV
and transmits
60MW
at
0.6pf
lagging and the impedance of the line is
(20+j100)\Omega
. Assume
t_(r)t_(s)=
1.143. You Answered 2.45 margin of error
(+)/(-)1%
